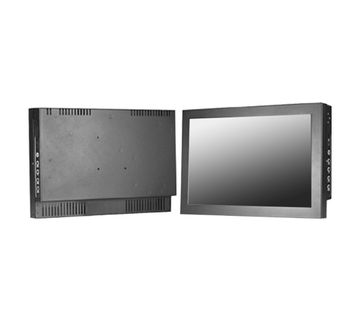

15.6" LCD monitor, 1920x1080, LED-1000nits,VGA + DVI , RS232 (touch) WV(178/178),WT(-40~70C), 9~36VDC PWR, build-in 5-resistive touch Compliance EN50155 anti-vibration and anti-shock (Model: ECHW1560-EN50155-TR)

15.6" LCD monitor, 1920x1080, LED-1000nits,VGA + DVI , RS232 (touch) WV(178/178),WT(-40~70C), 9~36VDC PWR, build-in 5-resistive touch Compliance EN50155 anti-vibration and anti-shock (Model: ECHW1560-EN50155-TR)

15.6" LCD monitor, 1920x1080, LED-1000nits,VGA + DVI , RS232 (touch) WV(178/178),WT(-40~70C), 9~36VDC PWR, build-in 5-resistive touch Compliance EN50155 anti-vibration and anti-shock (Model: ECHW1560-EN50155-TR)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV,SV,AV-Looping
    • Compliance EN50155 anti-vibration and anti-shock
ECHW1560-EN50155-TR
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 15.6" viewable diagonal area
Active Area / Pixel Pitch 344.16(H) x193.59(V) mm / 0.1793(H) x 0.1793(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 350 cd/m2 (typ) / 500 : 1
Response Time < 35 ms
Viewing Angle (typical) H.178° (- 89° ~ + 89°) , V. 178° (- 89° ~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 9~36VDC PWR
Power Consumption Operation / Power Saving 12.5 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity - 40°C ~ 70°C (-40°F ~ 158°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 40°C ~ 80°C (-40°F ~ 176°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 4.5 Kgs / 5.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
