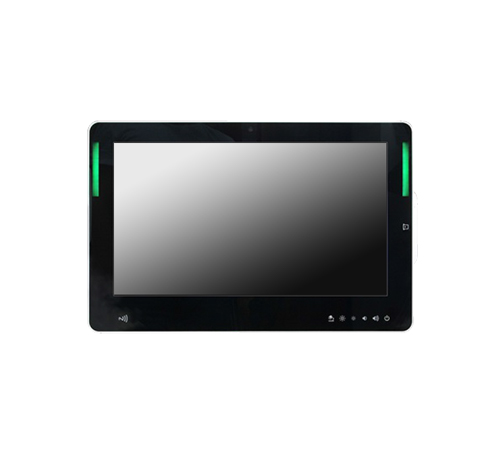

15.6" 1920x1080 220nits, Intel Atom Z8350, 2GB RAM, 32GB eMMC, PCAP, DC12~24V / PoE, Android 5.1 (Model: VPCW1560AO2-POE)

15.6" 1920x1080 220nits VW 178 H/V, Intel Atom Z8350,  2GB RAM, 32GB eMMC, PCAP, DC12~24V / PoE, Android 5.1

15.6" 1920x1080 220nits VW 178 H/V, Intel Atom Z8350, 2GB RAM, 32GB eMMC, PCAP, DC12~24V / PoE, Android 5.1

Main Feature

    • Intel Atom X5-Z8350 Processor: 2M Cache, up to 1.92 GHz
    • 2GB/4GB RAM
    • 32GB/64GeMMC
    • PCAP Touch
    • 10/100/1000 Ethernet (PXE Boot)
    • Touch button (Power/ Brightness/Volume/ LED)
    • RS232 or RS422 or RS485
    • DC 12-24V Input or Powered LAN802.3AT
    • NFC Reader
VPCW1560AO2-POE
  • Overview
  • Specifications
  • Download

Features:

  • Intel Atom X5-Z8350 Processor: 2M Cache, up to 1.92 GHz
  • 2GB/4GB RAM
  • 32GB/64GeMMC
  • PCAP Touch
  • 10/100/1000 Ethernet (PXE Boot)
  • Touch button (Power/ Brightness/Volume/ LED)
  • RS232 or RS422 or RS485
  • DC 12-24V Input or Powered LAN802.3AT
  • NFC Reader
  • Smart Card Reader
  • AMIC
  • 2.0MP Camera
  • Speak4n2.0W/2.5W(MAX)
  • LED Indicating Light Bar (Light color: Green and Red. Illuminating area: 70*8mm(front),70*5mm(side))
  • LED reading light
  • 75 x 75mm VESA Mount
  • Plastic has Antibacterial
  • Optional Handset

System Information
Processor Intel Atom X5-Z8350: 2M Cache, up to 1.92 GHz
Platform Controller Hub Intel X5-Z8350
System Memory 2GB/4GBDDR3LRAM
Storage
Storage 32GB eMMC / 64GB eMMC
Panel
LCD Size 15.6"
Resolution 1920x1080
Luminance 220
Viewing angle 178(H/V)
Touch Type PCAP
I/O
External I/O Connector 1 x RJ45 for RS232 or RS422 or RS485
2 x USB 2.0 Type A
1 x 10/100/1000 Ethernet
1 x4-Pin3.5mm Audio Jack
Internal I/O Connector 1 x Touch Button interface
1 x eDP & Dual channel 24bit LVDS
1 x I2C interface for PCAP
5 x USB interface for PCAP, Camera and others
1 x Micro USB2.0 client (reserved)
1 x Micro SD connector
2 x LED Bar interface
1 x AMIC
Camera 2.0MP Camera
Data Collection
Camera 2M pixel
NFC NFC Reader
Wireless Communication
WLAN 802.11 b/g/n
Display
Spec. & Resolution LVDS: Max. resolution 1920x1280 @ 60Hz
Multiple Display Windows support extended mode
Audio
Speaker Output 4n2.0W/2.5W(MAX)

Certifications
Certification Information CE, FCC Class B
Ethernet
LAN Chipset RealtekRTL8111H(S)-CG
LAN Port 1 x RJ45
Power Requirement
DC Input Input: 100-240 Vac/50-60 Hz Output: 60W Adapter (12V @ 5A Adapter)
Mechanical & Environmental
Operating Temperature 0C-40C
Storage Temperature -10C-60C
Operating Humidity 40C @ 95% Relative Humidity, Non-condensing
Weight 2.5 kg
VESA 75x75
Dimensions(W x L x D) 472.1 x269x70.1 mm
Power Requirement DC Input, 12-24V
Power Mode DC jack or Powered LAN 802.3AT
Software Support
OS Information Windows 10 IoT (64 bit), Android 5.1(64 bit), Linux (64bit)
