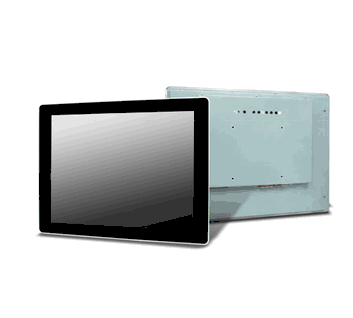

15" Full Flat Panel Design Digital TFT LCD Monitor w/ 2 Points Projected Capacitive Touch (Model: FCPM1500-PCAP)
15" Full Flat Panel Design Digital TFT LCD Monitor w/ 2 Points Projected Capacitive Touch (Model: FCPM1500-PCAP)
Main Feature
- Full Flat Panel Design
- 15" (1024x768) Digital TFT LCD
- Aspect Ratio: 4:3
- Input Signal VGA / DVI-D/ HDMI 1.3a
- Maximum Support Resolution 1920x1080
- Stereo Audio Amplifier, Output 2W@4Ω Speaker
- Audio Line-In
- 2 Points Projected Capacitive Touch
- 5 Key Buttons Control
- 8 Language OSD Menu
- LED Backlight
- Single Operation Voltage +12V
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| LCD Panel | |
| Panel Size | 15" |
| Resolution (Pixels) | 1024x768 |
| Color | 16.7M |
| Luminance without RTP | 250 cd/㎡ |
| Luminance (RTP) | 217cd/㎡ |
| Contrast Ratio | 700 |
| View Angle | 80 / 80 / 70 / 70 |
| LED Life Time | 50K (Min) |
| Power Requirement | |
| Power Input (DC Jack 2.1ψ) | +12 VDC |
| Power Consumption@+12V | 10.2Watts (@Without Amplifier) |
| Touch Screen | |
| PCAP Type | USB Interface ( 2 Points ) |
| Projected Capacitive Touch Support OS |
Windows / Linux |
| Input Signal | |
| VGA | D-Sub15 |
| DVI | DVI-D |
| HDMI | 1.3a |
| Audio | |
| Amplifier | 1W@8Ω / 2W@4Ω |
| Line-In | Stereo Input Phone Jackψ3.5 |
| Controls | |
| Key | 5 Buttons |
| Serial Remote Control | UART / RS232 (Option) |
| Mechanical | |
| Construction | Aluminum Front Bezel with Completely Covered Touch Screen Glass and SECC steel chassis |
| Mounting Type | Panel / VESA 100 x 100 Mount |
| Environment | |
| Temperature Range | |
| Operating | -20~+70°C |
| Storage | -20~+70°C |
| High Temperature & High Humidity (Non-condensing) | |
| Operating | +40°C/ 90% |
