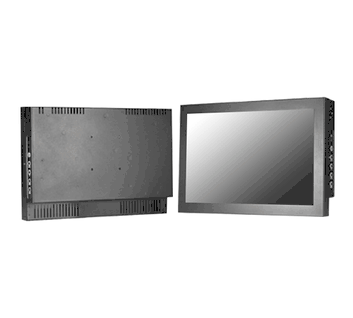

15.6" Industrial Grade Chassis Metal Housing Black w/ PCAP Touch, HDMI+LVDS Board+AC Internal Power Supply (Model: MCHW1560-PCT)
15.6" Industrial Grade 1920x080+PCAP touchscreen+Chassis metal housing black color paint+HDMI/LVDS baord+AC internal power supply
Main Feature
- Modularize mechanical design provides flexible product configuration and easy maintenance
- Optional build-in touch screen for interactive application
- Available with auto-brightness sensor offers application in day and night
- VGA connector with optional AV,SV,AV-Looping
- Complete custom design/solution for OEM customers
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
| Panel | Cell Type / Glass Surface | TFT LCD / Black Anti-Glare, low refection coating | |
| Aspect Ratio / Size | Wide / 15.6" viewable diagonal area | ||
| Active Area / Pixel Pitch | 344.16(H) x193.59(V) mm / 0.1793(H) x 0.1793(V) mm | ||
| Native Resolution / Colors | 1920(H) x 1080(V) / 16.7M | ||
| Brightness / Contrast | 250 cd/m2 (typ) / 500 : 1 | ||
| Response Time | ≤ 12 ms | ||
| Viewing Angle (typical) | H.90° (- 45° ~ + 45°) , V. 65°(- 40° ~ + 25°) | ||
| Light Source | LED backlight, Long life, 35,000 hrs (typ) | ||
| Input Sources | PC System | Signal | Analog RGB (0.7/1.0 Vp-p, 75 ohms) |
| Sync | Separate Sync, Composite Sync, Sync On Green | ||
| Frequency | Fh : 30 - 82Khz , Fv : 50 -75Hz | ||
| Audio System | 2W speaker x 2 | ||
| Input Terminals | 1 x VGA (15 Pin Female D-Sub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug | ||
| Convenient Features | Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) | ||
| OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing) | |||
| Power | Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz | ||
| Power Consumption | Operation / Power Saving | 12.5 watt , < 1 watt (Support DPMS) | |
| Operating Condition | Temperature / Humidity | 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation) | |
| Storage Condition | Temperature / Humidity | - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation) | |
| Certification | FCC , CE | ||
| Dimensions | Physical | Please refer to Drawing | |
| Carton | W x H x D = TBD | ||
| Weight | N.W. / G.W. | 4.5 Kgs / 5.5 Kgs | |
| Container Loaded | 20ft / 40ft / 40ft HQ | TBD (Sets , By pallet) | |
| Options | Touch | Video / TV | Enhanced Panel | Others |
| Resistive touch | SV + AV | Panel with LED backlight | Digital Signage(Stand alone) | |
| Capacitive touch | SV + AV + AV_Looping | High brightness panel | Networking Digital Signage | |
| SAW touch | SV + AV + TV | Wide Temperature | Motion Sensor | |
| Infrared touch | Sunlight Readable | Light Sensor | ||
| Protected glass | Auto-Dimming |
