15" Bezel-Free P-cap Panel PC, Braswell N3160, DC 9~36V, IP65 Front Bezel, 300nits, Wide Temp -20~60°C (Model: EGA1500B)

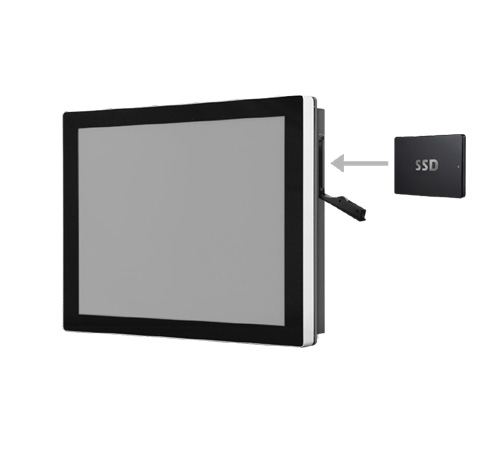

15" (1024*768) Bezel-Free P-cap Panel PC, Braswell N3160, DC 9~36V, IP65 Aluminum Front Bezel, 2.5" HDD Tray,1024*768. Brightness 300nits, Viewing 80/80/80/80 Wide Temp -20~60°C No Memory, Storage and OS. Est.Shipping Weight and Dimensions:55.5*19*50.6cm 10.6KG/pc

15" (1024*768) Bezel-Free P-cap Panel PC, Braswell N3160, DC 9~36V, IP65 Aluminum Front Bezel, 2.5" HDD Tray,1024*768. Brightness 300nits, Viewing 80/80/80/80 Wide Temp -20~60°C No Memory, Storage and OS. Est.Shipping Weight and Dimensions:55.5*19*50.6cm 10.6KG/pc

Main Feature

    • Celeron N3160 Quad Core 1.6 GHz
    • IP65 Front Bezel
    • Fanless Design
    • 3-Pin Power Input Terminal Block
    • DC 9~36V Wide Range Power Input
Inquiry/Quote Request
EGA1500B
  • Specifications
  • Download
  • Contact Sales
SYSTEM
Processor Intel Celeron N3160 SoC CPU
System Memory DDR3L SO-DIMM, up to 8 GB




External I/O Port 		4 x USB 3.0
2 x GbE LAN (RTL8111G)
1 x Display Port
1 x HDMI
3 x RS-232
1 x RS-422/485 (COM1)
1 x Audio
1 x Power press button
1 x 3-Pin Power Input
1 x Lockable HDD Tray
Storage 1 x SATA3 (6.0Gb/s)
  1 x mSATA (full size mini-PCIe)
Operating Windows 7 Pro, Windows Embedded
System Standard 7, Windows 8, Windows 10
Expansion 2 x MiniPCIe Slot

POWER REQUIREMENT
Power Type 3-Pin Power Input Terminal Block
  DC 9~36V Wide Range Power Input

TOUCH SCREEN
Type 15" P-cap USB

LCD
Display Type 15" TFT-LCD
Max. Resolution 1024*768
Max. Color 16.2 M
Luminance 300 nits
View Angle 170/160
Backlight Lifetime 30,000 hours

MECHANICAL
Construction Metal
IP Rating Front Panel IP66 Compliant
Mounting VESA / Panel Mount
Dimension TBC

ENVIRONMENT
Operating Temp -20~60 °C IEC-60068-2-1/2/14
Storage Temp -20~70 °C
Humidity 10~90% @40 °C, non-condensing
EMC FCC / CE Class A Certification CE Class B Compliant
Vibration 1.5 Grms @10~500Hz, IEC-60068-2-64
