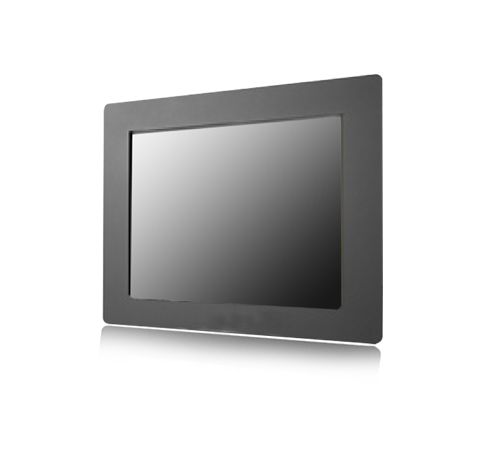

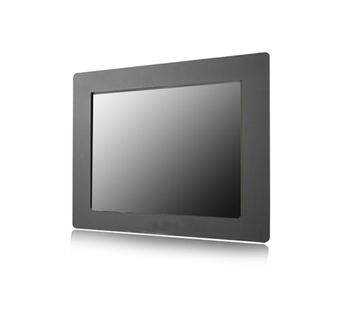

15.6" 1920x1080 Panel Mount LCD Monitor w/ VGA+DVI+HDMI, Side OSD, 5-Wires Resistive Touch (Model: EPMW1560HD-TRY)

15.6" Panel Mount LCD Monitor / 5mm Metal Front Bezel / 1920x1080 / 500nits LED / VGA+DVI+HDMI Signal Input / Side OSD / 5-Wires Resistive Touch with USB controller / VESA Mount / including Clamp mount

15.6" Panel Mount LCD Monitor / 5mm Metal Front Bezel / 1920x1080 / 500nits LED / VGA+DVI+HDMI Signal Input / Side OSD / 5-Wires Resistive Touch with USB controller / VESA Mount / including Clamp mount

Inquiry/Quote Request
EPMW1560HD-TRY
  • Overview
  • Specifications
  • Download



Features:
  • 15.6" Panel Mount LCD Monitor
  • 5mm metal front bezel design
  • Full HD resolution: 1920 x 1080
  • 500 nits LED backlight for enhanced brightness
  • Multiple signal inputs: VGA, DVI, HDMI
  • Side-mounted OSD controls
  • 5-wire resistive touch screen with USB controller
  • VESA mount support
  • Clamp mount included
Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size Wide / 15.6" viewable diagonal area
Active Area / Pixel Pitch 345.13(H) x194.4(V) mm / 0.2588(H) x 0.2588(V) mm
Native Resolution / Colors 1920(H) x 1080(V) / 16.7M
Brightness / Contrast 500 cd/m2 (typ) /1000 : 1
Response Time ≤ 25 ms
Viewing Angle (typical) 89/89/8989
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Terminals VGA + DVI+ HDMI
Touch 5-Wires Resistive Touch with USB controller
Power DC 12V Power Input
Power Consumption Operation / Power Saving 18 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
