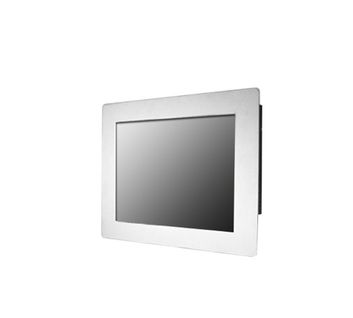

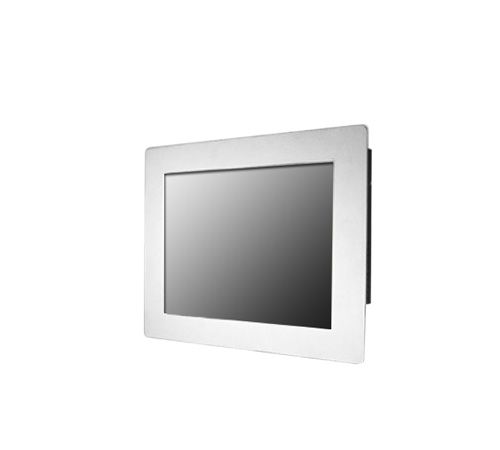

15" NEMA4x/IP65 Front Stainless Steel LCD Monitor w/ VGA, Side OSD, 5 Wire Resistive Touch, Integrated DC 9-36V (Model: ESPM1500-TR-DC)

NEMA4x/IP65 Front Stainless Steel Panel Mount (Front Bezel 3mm), 15" LCD monitor, 1024 x 768, 250 nits VGA Input, Side OSD, including rear screw/VESA Mount without gasket (Recommend Silicone seal) with 5 Wire Resistive Touch Screen and USB Controller - NO Included gasket Integrated DC 9-36V Input (Built-in). Terminal Block "+" and "-"

Overview
Specifications
Download

The ESPM1500-TR-DC is a robust 15-inch panel-mount LCD monitor designed for demanding industrial environments. Built with a stainless-steel housing and a sealed front bezel meeting NEMA 4X / IP65 standards, it offers excellent resistance against water, dust and harsh conditions. With full touchscreen integration, this monitor is ideal for applications in manufacturing, process control, food & beverage, and other wash-down or corrosive environments where both durability and interactive capability are essential.

Features:

IP65 Front-Side Sealed: Provides water and dust resistance for reliable performance in harsh environments.
Modular Mechanical Design: Enables flexible product configuration and simplifies maintenance.
5 Wire Resistive Touch Screen and USB Controller: Ideal for interactive applications.
Auto-Brightness Sensor: Automatically adjusts display brightness for optimal visibility in day and night conditions.
VGA Connector with Optional Inputs: Supports AV, SV, and AV-Looping options.
Integrated DC 9-36V Input (Built-in). Terminal Block "+" and "-"

Cell Type	TFT LCD
Glass Surface	Black Anti-Glare, low reflection coating
Aspect Ratio	4:3
Size	15" viewable diagonal area
Active Area	304.13(H) x 228.10(V) mm
Pixel Pitch	0.297(H) x 0.297(V) mm
Native Resolution	1024(H) x768(V)
Colors	16.2M
Brightness	250
Contrast	1000 : 1
Response Time	≤ 16 ms
Viewing Angle (typical)	H. 130° (- 65° ~ + 65°) , V 100°(- 55° ~ + 45°)
Light Source	LED backlight, Long life, 50,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Integrated DC 9-36V Input (Built-in). Terminal Block "+" and "-"
POWER CONSUMPTION
Operation / Power Saving	20 watt, < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity	-20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical	Please refer to Drawing
Carton	W x H x D = TBD
WEIGHT
N.W. / G.W.	5.0 Kgs / 6.0 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ	TBD (Sets , By pallet)

TOUCH	VIDEO INPUT	ENHANCED PANEL	POWER	OTHERS
Resistive Touch	AV-IN	High Brightness Panel	24V DC-IN	Motion Sensor
Projected Capacitive Touch	AV Looping	Sunlight Readable	9~36V DC-IN	Light Sensor
Infrared Touch	HDMI / DP	Wide Viewing Angle	48V 72V DC-IN	VR-knob Dimming
Protected Glass	HD-SDI	Wide Temperature	90V 125V DC-IN	RS232 Remote On/Off
Optical Bonding		UV Film	110V 220V DC-IN	Military Connector: MIL 38999
		Anti-Vandal		Metal Connector: M12 / M16
				Stainless 316 Enclosure
