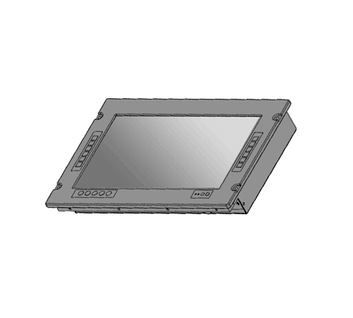

15.6" Military Touch Panel PC 12 Programmable Function Keys w/ Core i7, 16GB RAM, 512GB SSD (Model: NmilW1560PCAP-i7)

Rugged 15.6" PCAP Touch Panel PC, 12 Programmable Function Keys, Day Night Vision Buttons, Intel new 12th Gen. i7 10-Core 3.5~4.7GHz CPU, 16GB DDR4 3200 MHz RAM, 512GB M.2 NVMe SSD, 2 x 2.5Gb LAN, 4x USB3.2, 2x HDMI, 1x RS232/422/485, DC9~36V, External AC100~264V Adapter

Rugged 15.6" PCAP Touch Panel PC, 12 Programmable Function Keys, Day Night Vision Buttons, Intel new 12th Gen. i7 10-Core 3.5~4.7GHz CPU, 16GB DDR4 3200 MHz RAM, 512GB M.2 NVMe SSD, 2 x 2.5Gb LAN, 4x USB3.2, 2x HDMI, 1x RS232/422/485, DC9~36V, External AC100~264V Adapter

Inquiry/Quote Request
NmilW1560PCAPP-i7
  • Overview
  • Specifications
  • Download
Introducing the 15-inch Military Rugged Touch Panel PC, a pinnacle of durability and functionality in the realm of industrial and military-grade computing solutions. Crafted to thrive in the most demanding environments, this cutting-edge device combines robust construction with advanced technology, ensuring unparalleled performance and reliability in mission-critical tasks.

Designed to withstand harsh conditions, including shock, vibration, and extreme temperatures, this rugged touch panel PC is engineered to excel where conventional computers falter. Powered by an Intel Core i7 processor, it offers exceptional processing power and efficiency, empowering users to execute complex tasks with ease and precision.


Features:
  • 15.6" Military Grade Aluminum Alloy Front Bezel
  • PCAP Touch
  • 12 Programmable Function Keys
  • Day Night Vision Buttons,
  • Intel new 12th Gen. i7 10-Core 3.5~4.7GHz CPU
  • 16GB DDR4 3200 MHz RAM / 512GB M.2 NVMe SSD
  • 2x 2.5Gb LAN, 4x USB3.2, 2x HDMI, 1x RS232/422/485, DC9~36V, External AC100~264V Adapter

Mechanical Front Bezel Military grade aluminum alloy front bezel
Chassis Galvanized steel with anti-corrosion coating
Treatment Semi-gloss painting in black
100% Fanless 100% Fanless Design Yes, 100% Fanless Design
Cooling Method Conductive Air Cooling through large heatsink module
Mounting Front Mount Front Mount
VESA Mount VESA-100 Wall Mount
LCD Module LCD Size 15.6"
LCD Grade Military grade LCD
Resolution 1920 x 1080 Full HD
Brightness 450 cd/m2
Contrast Ratio 1000 : 1
No. of Color 16.7 M
View Angle 85º / 85 / 85 / 85º
Touch Touch Type 10-Point Projected Capacitive Touch
Touch Interface USB
Scratch Free Yes, scratch free
Computer System Main Board Military grade mother board
Processor Intel new 12th Gen. i7 10-Core 3.5~4.7GHz CPU
Core / Thread 10 Core, 12 Threads
Speed 3.5~4.7GHz
Cache Memory 6MB smart cache
Power Consumption 15W
Graphics Graphics Engine Intel Iris Xe graphics processor
DirectX 12.1
Open GL 4.6
Open CL 3.0

System RAM RAM 16GB DDR4 3200MHz Ultra High Speed
RAM Type SO-DIMM
Expansion Expandable up to 64GB
Storage SSD 512GB NVMe M.2 2280 Ultra Fast SSD
SSD Type M.2 2280 NVMe
Expandable 1TB, 2TB … etc.
Speakers Speakers Optional
I/O Port LAN 2 x 2.5 Gb ultra high speed LAN
USB 4 x USB3.2 ultra high speed
HDMI 2 x HDMI
Serial (COM) 1 x configurable RS232/422/485
Audio 1 x Audio out
Power Connector 1 x DC with Mil-D-38999 Mil. connector
Prog. Function Keys Left Side Front 6 Fn Keys (F1 to F6)
Right Side Front 6 Fn Keys (F7 to F12)
Night-Day Vision N Button Night vision : preset at 20 cd/m2
- / + Buttons Decrease or Increase brightness
- / + Buttons Decrease or Increase brightness
On-Off LCD Display On-Off
Power Supply DC Power Input DC9~36V wide input
Power Supply Mil. Grade power supply
Polarity Reverse Fully protected
AC Power Input External AC90~264V power adapter
Power Consumption 33~38W
Dimensions Exclude Front Bezel 452 (W) x 302 (H) x 72 (D) mm
Include Front Bezel 452 (W) x 302 (H) x 82 (D) mm
  Environmental Operating Temperature 0 to +50 degree C
Optional Oper. Temp. Option : -20 to +70 degree C
Storage Temperature -30 to +90 degree C
Humidity 5~95% R.H. at 35C, non-condensing
Vibration MIL-STD-810 compliant
Shock MIL-STD-810 compliant
EMI / EMC CE Approved
FCC Approved
MIL-STD-461 Compliant (Test Cost is required if request MIL-STD-461 certificate)
