15.6" Rugged LCD Monitor, 1080p, 450 nits, VGA/DVI/HDMI/RS232, DC (Mil Connector) (Model: NHDW1560)

15.6" Rugged LCD Monitor, 1920x1080 Programmable Function Keys, with 450nits 1x VGA, 1x DVI, 1x HDMI, 1x RS232, 1x DC with Mil. Circular connector

15.6" Rugged LCD Monitor, 1920x1080 Programmable Function Keys, with 450nits 1x VGA, 1x DVI, 1x HDMI, 1x RS232, 1x DC with Mil. Circular connector

Inquiry/Quote Request
NHDW1560
  • Overview
  • Specifications
  • Download

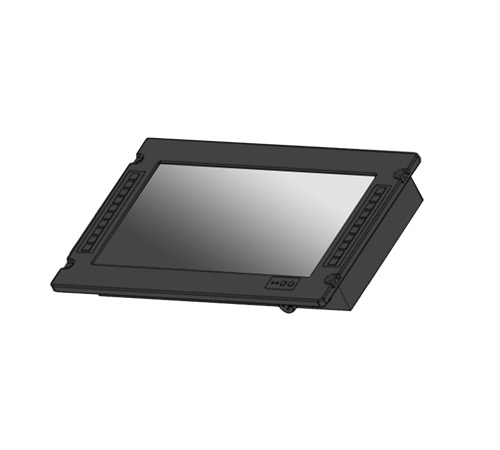

Designed for mission-critical environments, the 15-inch Military Grade Rugged LCD Monitor (NHDW1560) delivers reliable performance in extreme and demanding conditions. Built with a durable rugged chassis and engineered to meet military-grade standards, this display ensures stable operation under shock, vibration, and harsh environmental exposure. With a high-quality industrial panel and versatile connectivity, it is ideal for defense systems, field operations, and industrial applications where reliability and durability are essential.


Features:
  • 15.6" rugged military-grade LCD
  • 1920x1080, 450 nits
  • Programmable function keys
  • VGA, DVI, HDMI, RS232
  • DC input (military circular connector)
LCD Display LCD Grade Native military grade LCD panel
LCD Size 15.6"
Resolution 1920 x 1080 Full HD
Luminance 450 cd/m2
Contrast Ratio 700 : 1
Display Color 16.7 M
Viewing Angles 85 / 85 / 70 / 70
Protected Glass Protected Glass Yes
Mechanical Front Bezel Rugged Military Grade 64439 Aluminum Alloy with anti-corrosion treatment
Chassis Heavy duty galvanized steel with anti-corrosion treatment
Color Black
Fanless 100% Fanless Design
Mount Front Mount Support Front Mount, Panel Mount, Console Mount
VESA Optional
Function Keys F1~F10 F1~F10 function keys at the left side of front bezel
F11~F20 F11~F20 function keys at the right side of front bezel
Day, Night Day, Night, Brightness -, + control keys for display
System On-Off System Reset and On-Off keys
I/O Port VGA 1 x VGA
DVI 1 x DVI
HDMI 1 x HDMI
RS232 1 x RS232
Audio 1 x Audio jack
DC 1 x DC with Mil. Circular connector
Power Supply DC Power Input DC9~36V wide input (price does not include MIL-STD Test Cost)
Power Supply Military grade power supply, MIL-STD-1275D compliant
Polarity Reverse Fully protected in DC mode
Power Consumption Less than 40 Watts
Dimension Exclude Front Bezel 433 (W) x 282 (H) x 66 (D) mm
Include Front Bezel 433 (W) x 282 (H) x 78 (D) mm
Environmental Vibration MIL-STD-810 compliant
Shock MIL-STD-810 compliant
Operating Temperature 0 to +50 deg. C
Storage Temperature -20 to +75 deg. C
EMI / EMC CE Approval
FCC Approval
