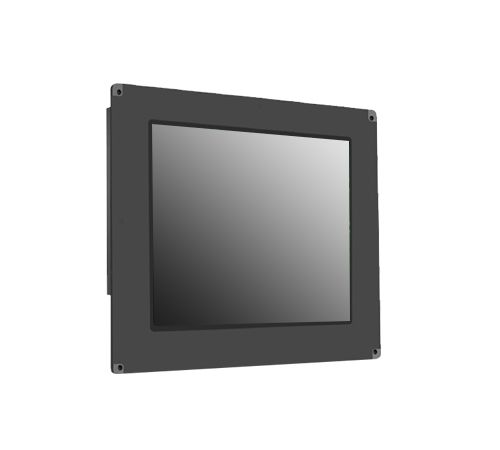

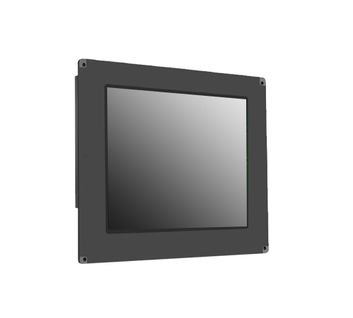

15" Military Grade Flush Mount LCD Monitor, LED-1000nits, MIL 38999: HDMI, DC Power, Support NVIS (Model: EMFM1500HB-NVIS)

Military Grade Flush Mount 15" LCD Monitor, 1024x768, LED-1000 nits, AC-IN w/ Built-in PWR, MIL 38999: HDMI + DC Power, Support NVIS (Night Vision 0.343 cd/m2.)

Military Grade Flush Mount 15" LCD Monitor, 1024x768, LED-1000 nits, AC-IN w/ Built-in PWR, MIL 38999: HDMI + DC Power, Support NVIS (Night Vision 0.343 cd/m2.)

Inquiry/Quote Request
EMFM1500HB-NVIS
  • Overview
  • Specifications
  • Download
The EMFM1500HB-NVIS 15-inch Military Grade Flush Mount LCD Monitor is designed for mission-critical and defense applications requiring durability, visibility, and reliability. Featuring high-brightness performance and NVIS compatibility, this monitor ensures clear and compliant display operation in both day and night environments. Its rugged construction and flush-mount design make it suitable for demanding military, avionics, and industrial installations where performance and reliability are essential.


Features:
  • Equipped with an auto-brightness sensor for optimal use in both day and night environments.
  • The modular mechanical design allows for flexible product configuration and simplifies maintenance.
  • Military Grade, Flush Mount
  • MIL 38999: HDMI + DC Power
  • Support NVIS (Night Vision 0.343 cd/m2.)
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4:3
Size 15" viewable diagonal area
Active Area 304.13(H) x 228.10(V) mm
Pixel Pitch 0.297(H) x 0.297(V) mm
Native Resolution 1024(H) x 768(V)
Colors 16.2 M
Brightness 1000
Contrast 700 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140°(- 70°~ + 70°) , V. 120°(- 60°~ + 60°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
HDMI + DC Power
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Internal power supply with universal / Auto-Sensing, AC90 to 260V, 50/60 Hz
POWER CONSUMPTION
Operation / Power Saving 20 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10%~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 4 Kgs/5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
