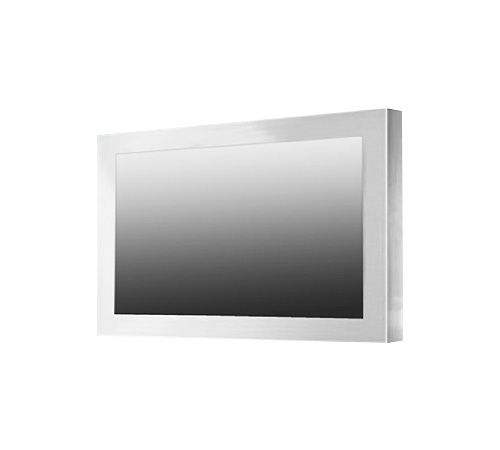

15.6" 1000nits Full IP66 Stainless Steel Chassis LCD Monitor w/ HDMI, DC 12V, Wide Temp (Model: YCHW1560HB-SIP)
15.6" Full IP66 Stainless Steel Chassis LCD Monitor / 1920x1080 / 1000nits LED / AR Coating Protective Glass / HDMI Signal Input / DC 12V power input / VESA Mount / Operating Temp.: -30C to +85C / Include Waterproof Cables
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Experience industrial-grade display performance with iTech's 15-inch high-brightness, fully-sealed IP66 stainless-steel chassis LCD monitors. Engineered for rugged environments, these monitors deliver sunlight-readable brightness, corrosion-resistant enclosure, and optional optical bonding to enhance durability and visual clarity. Whether deployed outdoors, in marine or food-processing applications, or in harsh factory settings, these monitors bring reliable performance where standard displays fail. |
Features: |
|
| Panel Type | 15.6-inch TFT LCD |
| Screen Diagonal | 15.6-inch |
| Active Display Area (mm) | 344.2(H) x 193.56(V) |
| Pixel Pitch (mm) | 0.17925 x 0.17925a |
| Number of Pixels | 1920 x 3(RGB) x 1080 |
| Contrast Ratio | 500:1 |
| Display Color | 16.7M Colors ( RGB 8-bits ) |
| Brightness (cd/m) | 1000 cd/m |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | HDMI |
| Power Source | DC 12V Power Input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -30 ~ +85°C |
| Storage Temperature | -30 ~ +85°C |
| Plug & Play | VESA DDC 1/2B |
High Quality Parts
i-Tech company uses only the best Industrial LCD and High Quality embedded Panel PC parts along with rugged components in USA or imported from Korea and Taiwan , for most reliable quality that you can trust!
Customer Service
i-Tech customer service reps are here to help you with your inquiry for Industrial monitors, panel pc, and outdoor LCD. From any general questions to technical support, we leave you feeling completely satisfied with our excellent LCD quality as well.
US Based Company
Most of i-Tech’s High Brightness LCD and Rugged Panel PC Products are assembled, tested and shipped from our very own factory in CA USA, giving us the ability to customize the systems to your needs.
