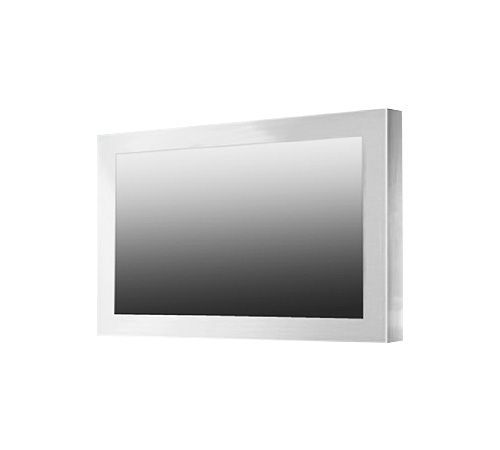

15.6" 1000nits Full IP66 Stainless Steel Chassis LCD Monitor w/ HDMI, DC 12V, Wide Temp, AR Coating Glass (Model: YCHW1560HB-SIP-V2)
15.6" IP66 All Sides Screen / Stainless Steel housing / 1920x1080 1000nits LED / Rear OSD / Flush Mount / VESA Mount / HDMI Signal input with waterproof cable / DC 12V Power Input with waterproof cable 2mm AR coating Glass / Operating temp: -30C to 80C
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The YCHW1560HB-SIP-V2 is a rugged, high-performance 15.6-inch LCD monitor designed for demanding industrial and outdoor environments. Encased in a fully sealed stainless steel chassis with IP66 protection on all sides, this display delivers exceptional durability against dust and water ingress. With a full HD resolution (1920x1080), ultra-bright 1000 nits LED backlight, and 2 mm anti-reflective glass, it ensures crisp visibility even in direct sunlight. It features a rear OSD (on-screen display) for quick configuration, supports both flush and VESA mounting, and offers reliable connectivity via waterproof HDMI and DC-12V power cables. Engineered for extreme conditions, it operates across a wide temperature range of –30 °C to +80 °C, making it a highly reliable solution for mission-critical applications. |
Features: |
|
| Panel Type | 15.6-inch TFT LCD |
| Screen Diagonal | 15.6-inch |
| Active Display Area (mm) | 344.2(H) x 193.56(V) |
| Pixel Pitch (mm) | 0.17925 x 0.17925a |
| Number of Pixels | 1920 x 3(RGB) x 1080 |
| Contrast Ratio | 500:1 |
| Display Color | 16.7M Colors ( RGB 8-bits ) |
| Brightness (cd/m) | 1000 cd/m |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | HDMI |
| Power Source | DC 12V Power Input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -30 ~ +85°C |
| Storage Temperature | -30 ~ +85°C |
| Plug & Play | VESA DDC 1/2B |
