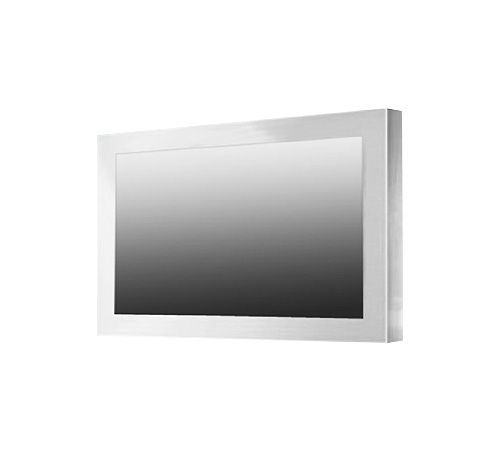

15.6" 1000nits Full IP66 Stainless Steel Chassis LCD Monitor w/ HDMI, DC 12V, Wide Temp, Optical Bonding (Model: YCHW1560HB-SIP-OB)
15.6" Full IP66 Stainless Steel Chassis LCD Monitor / 1920x1080 / 1000nits LED / AR Coating Protective Glass / HDMI Signal Input / DC 12V power input / VESA Mount / Operating Temp.: -30C to +85C / Include Waterproof Cables, Integrated Optical Bonding
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| Experience industrial-grade display performance with iTech's 15-inch high-brightness, fully-sealed IP66 stainless-steel chassis LCD monitors. Engineered for rugged environments, these monitors deliver sunlight-readable brightness, corrosion-resistant enclosure, and optional optical bonding to enhance durability and visual clarity. Whether deployed outdoors, in marine or food-processing applications, or in harsh factory settings, these monitors bring reliable performance where standard displays fail. |
Features: |
|
| Panel Type | 15.6-inch TFT LCD |
| Screen Diagonal | 15.6-inch |
| Active Display Area (mm) | 344.2(H) x 193.56(V) |
| Pixel Pitch (mm) | 0.17925 x 0.17925a |
| Number of Pixels | 1920 x 3(RGB) x 1080 |
| Contrast Ratio | 500:1 |
| Display Color | 16.7M Colors ( RGB 8-bits ) |
| Brightness (cd/m) | 1000 cd/m |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | HDMI |
| Power Source | DC 12V Power Input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -30 ~ +85°C |
| Storage Temperature | -30 ~ +85°C |
| Plug & Play | VESA DDC 1/2B |
