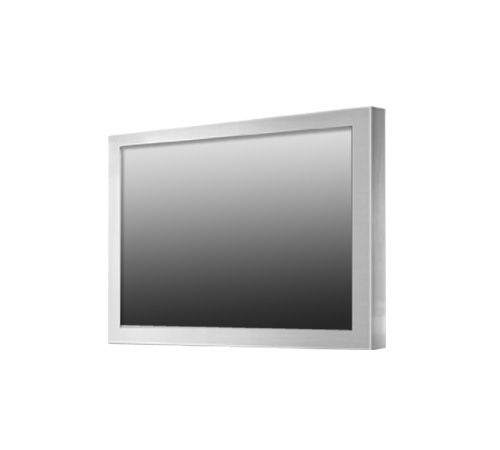

15" 1000nits Full IP66 Stainless Steel Chassis LCD Monitor w/ HDMI, PCAP Touch, DC 12V Power Input (Model: YCH15HB-SIP-PCT)
15" Full IP66 Stainless Steel Chassis LCD Monitor / 1024x768 / 1000nits LED / PCAP Touch (UV Blocking SCA) with USB controller / HDMI signal input / DC 12V power input / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 15-Inch Full IP66 Stainless Steel Chassis LCD Touch Monitor (YCH15HB-SIP-PCT) from iTech is engineered for extreme environments where durability, hygiene, and reliability are essential. Built with a rugged stainless steel enclosure and a fully sealed IP66-rated design, this display offers complete protection against dust, water, and corrosion. Featuring a high-brightness 1000-nit LED panel, PCAP touch with UV-blocking SCA, and versatile HDMI connectivity, it ensures excellent performance even in demanding industrial, marine, and outdoor settings. |
Features: |
|
| ITEM | SPECIFICATION |
| Panel Type | 15.0-inch TFT LCD |
| Screen Diagonal | 15.0-inch |
| Active Display Area (mm) | 304.1(H) x 228.1(V) |
| Pixel Pitch (mm) | 0.297x 0.297 |
| Number of Pixels | 1024 x 3(RGB) x 768 |
| Contrast Ratio | 800:1 |
| Display Color | 262K/16.2M Colors |
| Brightness (cd/m) | 1000 cd/m |
| Viewing Angle(Typ.) | 80 / 80 / 70 / 80 ( R/L/U/D) |
| Signal Connector | HDMI |
| Power Source | DC 12V power input |
| Power Management | VESA DPMS Compliant |
| Operating Temperature | -10 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Plug & Play | VESA DDC 1/2B |
| Touch Type | PCAP Touch (UV Blocking SCA) with USB controller |
| -Transparency | > 85% (typ.) |
| Hardness of surface | 7H |
| -Linearity | ±1.5%(max.) |
