15" Full IP65 Stainless Steel Panel PC w/ 5W Resistive Touch 13th Gen i3-1315UE, 2xUSB, 2xRS232, 2xGLAN, 2x12V DC (Model: KSP1500-i3-U1)

15" Full IP65 Stainless Steel Panel PC with 5W Resistive Touch Screen 13th Gen i3-1315UE, 2 x USB , 2 x RS232, 2 x GLAN, 2 x 12V DC in Power Adapter, all M12 waterproof connectors with cables, external heatsink VESA 100x100 & & Yoke mount, 1024 x 768 dpi (Support Win 11)

15" Full IP65 Stainless Steel Panel PC with 5W Resistive Touch Screen 13th Gen i3-1315UE, 2 x USB , 2 x RS232, 2 x GLAN, 2 x 12V DC in Power Adapter, all M12 waterproof connectors with cables, external heatsink VESA 100x100 & & Yoke mount, 1024 x 768 dpi (Support Win 11)

Inquiry/Quote Request
KSP1500-i3-U1
  • Overview
  • Specifications
  • Download

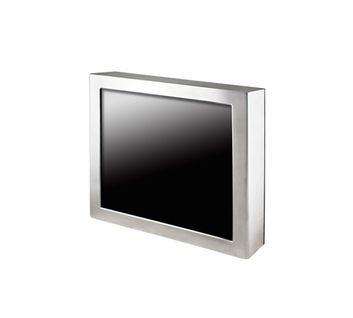

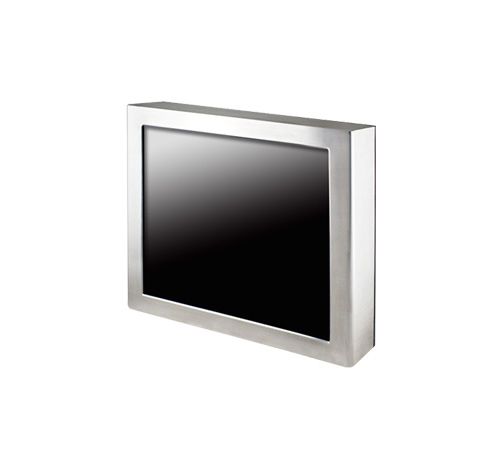

KSP1500-i3-U1, a rugged 15-inch stainless steel panel PC designed for demanding industrial environments. With its full IP65-rated enclosure, this panel PC offers robust protection against dust and water ingress, making it ideal for food processing, pharmaceuticals, clean rooms, and other harsh-duty settings. Featuring a touch-capable display, a powerful Intel Core i3 series processor, and a hygienic stainless steel design, the KSP1500-i3-U1 delivers reliable performance and durability where you need it most.


Features:
  • Fanless and rugged design
  • Intel Mobile 13th Core i3-1315UE, 28W
  • Resolution 1024 x 768 dpi
  • 5 Wires Resistive touch solution
  • Full  IP65 Stainless Steel
  • VESA mount & Yoke mount
  • Wide Voltage DC-IN 12~24V (OCP & OVP)
  • INDUSTRIAL 8GB DDR 5 So-DIMM
  • INDUSTRIAL M.2 256GB SSD
  • Window 11 Pro ( English)
  • Full IP65 DC in Power Adapter
SYSTEM
CPU Intel Mobile 13th Core i3-1315UE, 28W
Memory INDUSTRIAL 8GB DDR 5 So-DIMM
Storage INDUSTRIAL M.2 256GB SSD
OS support Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)
Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)
Linux (Support by request)
I/O PORTS
M12 RS232 2
M12 GLAN 2
M12 USB 2.0 2
EXPANSION
M.2 1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280
1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042
1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
DISPLAY
Size 15"TFT
Resolution 1024x768
Colors 16.7M
Luminance 300 cd/m2
Contrast Ratio 2500:1
View Angle (HA/) 176° / 176°
MECHANICAL & ENVIRONMENTAL
Operation Temp. 0 ~ 45°C
Storage Humidity 10 ~ 90%, non-condensing
 FORM FACTOR
 Touch Screen 5 Wires Resistive (Single touch)
 Mounting VESA mount (100x100mm) & Yoke mount
 WIFI Optional External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance
 Power adaptor Full IP67 Waterproof Power adaptor : Specifications may vary by country( 150W / 100 ~ 305V AC input / 12V DC output) / (150W / 100 ~ 305V AC input / 24V DC output)
