15" Front IP65 Industrial Panel Mount w/ VGA, HDMI, USB or RS232 (for Touch use) Resistive Touch (Model: CPM1500IP-TR-W)

15" 1024x768 Front IP65 Industrial Panel Mount 350nits VGA, HDMI, USB or RS232 ( for Touch use ) and 12VDC with external 100-240VAC Power Adapter, Resistive Touch

15" 1024x768 Front IP65 Industrial Panel Mount 350nits VGA, HDMI, USB or RS232 ( for Touch use ) and 12VDC with external 100-240VAC Power Adapter, Resistive Touch

Inquiry/Quote Request
CPM1500IP-TR-W
  • Overview
  • Specifications
  • Download

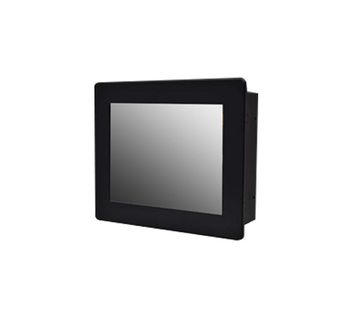

The 15-Inch Front IP65 Industrial Panel Mount Monitor (CPM1500IP-TR-W) is a rugged and durable display designed for harsh industrial environments. With its IP65-rated front panel, resistive touch screen, and panel mount design, this monitor ensures reliability in demanding applications such as manufacturing, automation, and outdoor kiosks. Its robust construction and high-performance display make it ideal for industrial control systems and other mission-critical uses.


Features
  • 15" Industrial Panel / 1024x768 / 350nits
  • Panel Mount ( with 3mm front bezel ) / Clamp with VESA Mount
  • Resistive Touch ( USB / Front IP65)
  • Speakers
  • I/O : VGA, HDMI, USB or RS232 ( for Touch use ) and 12VDC with external 100-240VAC power adapter
Display Viewing Size Image 15"
Active Display Area (mm) 304.1 (H) x 228.1(V)
Pixel Pitch (mm) 0.297 (H) x 0.297(V)
Resolution 1024x768
Contrast Ratio 700 : 1
Color 16.7 M
Brightness 350 nits
Viewing Angle -80~80 (H) ; -70~70 (V)
Recommended Resolution 1024 x 768 @ 60H, 75Hz
Signal Connector VGA, HDMI
Power Source 12VDC with external 100-240VAC power adapter
Consumption 8.7W typical, normal operation
Management VESA DPMS Compliant
Options Touch Resistive, PCAP
High Brightness 1000,1500
Auto Dimming Yes
POWER in DC24V,DC 9V~36V
Remote Control Yes
IO AV,DP
