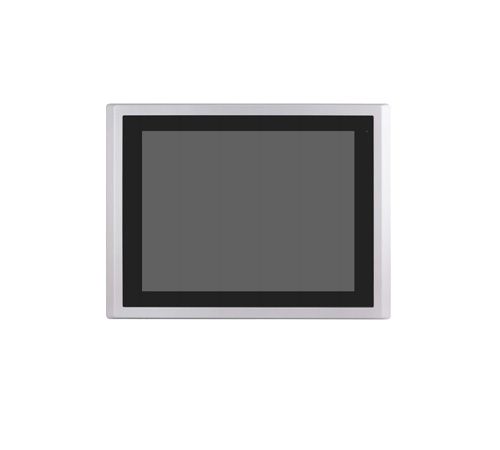

15" Aluminum Chassis High Brightness Fanless HMI Barebone Panel PC Intel Core i3 PCAP Touch, 9~36VDC (Model: APC1500HB-i3)

15" XGA Fanless HMI Barebone with Intel 12th Gen. Core i3-1215U, 2x DDR4 Slot, Projected Capacitive Touch, 9~36VDC input with adapter, Aluminum Chassis.

15" XGA Fanless HMI Barebone with Intel 12th Gen. Core i3-1215U, 2x DDR4 Slot, Projected Capacitive Touch, 9~36VDC input with adapter, Aluminum Chassis.

Inquiry/Quote Request
APC1500HB-i3
  • Overview
  • Specifications
  • Download
The APC1500HB-i3 is a rugged 15-inch aluminum chassis panel PC designed for industrial applications that demand durability and performance. Built with a fanless architecture, it ensures silent operation and long-term reliability even in harsh environments. Featuring a high-brightness display with front IP65 protection, this panel PC delivers excellent visibility in bright conditions, making it ideal for factory automation, control systems, and outdoor industrial use.


Features:
  • 15" Industrial Compact Panel PC
  • Processor: Intel 12th Gen i3-1215U (Alder Lake-P)
  • Memory: Supports 2x DDR4 3200 MHz SO-DIMM, up to 32 GB
  • Front Bezel: IP66-compliant aluminum
  • Touchscreen: Projected capacitive multi-touch support
  • Display Option: High-brightness LCD version available
  • Cooling: Fanless design
  • Power Input: DC 9~36 V wide range
System
CPU Core i3-1215U (2P/4E/8T, P-core:4.4GHz, E-core:3.3GHz, 15W TDP)
System Chipset SoC
Memory 16GB DDR4 3200 SO-DIMM
Bios AMI UEFI
I/O Port
USB 2 x USB 3.2 Type A, 2 x USB 2.0 Type A
Serial 1 x DB9 Type RS-485/422/232(COM1, BIOS selection, RS-232 is default)
1 x DB9 Type RS-485/422/232(COM2, BIOS selection, RS-232 is default)
1 x DB9 Type RS-232(COM3)
LAN 1 x RJ45 Type Intel I219LM GbE LAN
1 x RJ45 Type Intel I210AT, GbE LAN
Power 1 x Terminal Block Type, 9-36VDC Power input
Storage Space
HDD/SSD 1 x M.2 Key-M Slot for NVME (PCIe, 2280)
Expansion
Expansion slot x M.2 Key-E Slot (Support WIFI+BT, 2230)(USB2.0, PCIe x1)
1 x M.2 Key-B Slot w/1 x Nano-SIM slot(Support 4G/5G,
3042/3052) (USB3.2 Gen.1 x1, PCIe x1(Default)/SATA, USB2.0)
Storage Space
TPM Onboard TPM2.0 SPI I/F TPM IC
Watchdog Timer 1~255 sec (system)
Wake on LAN Support WOL
Display
Display Type 15" TFT-LCD
Max. Resolution 1024 x 768
Max. Color 16.7M
Luminance (cd/m2) 1000
View Angle 176(H)/176(V)
Contrast 3000:1
Backlight Lifetime 70,000 hrs
Touch Screen
Type Projected Capacitive Touch
Interface USB
Light Transmission(%) 90%

Power
Power Input DC 9~36V
Power Consumption 80W (MAX)
Mechanical
Construction Aluminum Die-casting Chassis
Mounting Panel Mount , VESA mount 100x100
Dimensions (WxHxD) 410.2 x 290 x 78.7mm
IP Rating IP66 Compliant Front Bezel
Net Weight 5 kg
Environmental
Operating Temperature 0~50˚C
Storage Temperature -30~70˚C
Humidity 10 to 95%@ 40˚C, non-condensing
Certificate CE/FCC Class A/UL
Operating Support
Windows 10 IoT Enterprise 2021 LTSC
Windows 11 (21H2) or later
Linux 22.04 or later
