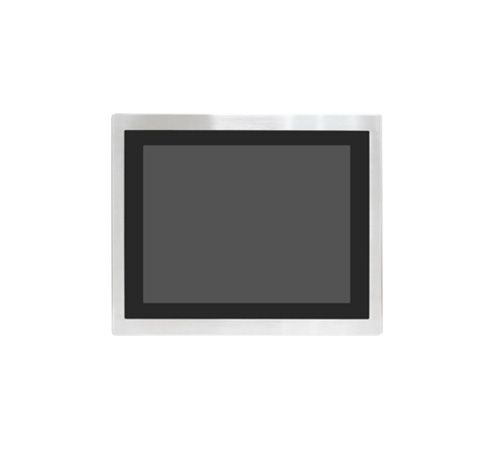

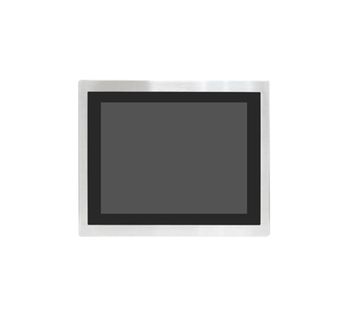

15" 1000nits IP65 Fanless Panel PC w/ Intel Core i5-6300U, PCT Touch, C1D2 Certified (Model: APCW15HB-C1D2-P-V1)

15" XGA HB1000nits IP65 / Optical Bonding, Intel Core i5-6300U 2.4GHz, Fanless Panel PC, 16GB DDR4 memory, 1x 256GB 2.5" MLC SSD, 1x 64GB mSATA MLC SSD, Projected Capacitive Touch, DC9~36V Power Input, 316 Stainless Steel Enclosure, Support VESA Mount, WT-20~60

15" XGA HB1000nits IP65 / Optical Bonding, Intel Core i5-6300U 2.4GHz, Fanless Panel PC, 16GB DDR4 memory, 1x 256GB 2.5" MLC SSD, 1x 64GB mSATA MLC SSD, Projected Capacitive Touch, DC9~36V Power Input, 316 Stainless Steel Enclosure, Support VESA Mount, WT-20~60

Inquiry/Quote Request
APCW15HB-C1D2-P-V
  • Overview
  • Specifications
  • Download
The APCW15HB-C1D2-P-V1is a rugged 15-inch fanless panel PC designed to perform reliably in hazardous and industrial environments. Built with a stainless steel enclosure and featuring a high-brightness 1000 nits display, this unit is ideal for applications in oil & gas, food processing, and outdoor settings. It is fully IP65-rated at the front, powered by an Intel 6th Gen Core i5 processor, and certified for C1D2 compliance. With a projected capacitive touchscreen, wide voltage support, and M12 waterproof connectors, this panel PC is built to handle harsh and demanding conditions while delivering exceptional performance.


Features:
  • 15" TFT-LCD display
  • Intel 6th Gen Core i5-6300U 2.4GHz processor
  • Constructed with durable SUS 316 stainless steel
  • Fully sealed IP66-rated enclosure with M12 waterproof connectors
  • Certified for ATEX/IECEx Zone 2 & 22, and C1D2/C2D2/C3 hazardous environments
  • Supports both panel mount and VESA mount options
  • Projected capacitive touch technology for smooth and accurate input
  • Full flat bezel design with fanless thermal management
  • Wide-range DC 9~36V power input
  • Versatile I/O interface for various industrial applications
  • Includes power adapter and power cable


Certificate:
  • CE / FCC Class A
  • ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
  • ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
  • Class I, Division2, Group A,B,C,D,T4
  • Class II, Division2, Group F,G, T135°C
  • Class III
  • ANSI/ISA 12.12-01-2013
  • CSA Std., C22 No213-1987
SYSTEM
CPU Onboard 6th Gen Intel Core i5-6300U 2.4GHz
System Chipset SoC
Memory 16GB DDR4
USB 1 x M12 8-pin for 2 x USB 2.0 with waterproof cover and chain
Serial / Parallel 1 x M12 8-pin for COM1, RS-232/422/485, default RS-232, with waterproof cover and chain
LAN 2 x M12 8-pin for LAN with waterproof cover and chain
Graph 1 x M12 8-pin for VGA with waterproof cover and chain
Power 1 x M12 3-pin for DC power connector with waterproof cover and chain
STORAGE
HDD 256GB 2.5" MLC SSD
1x 64GB mSATA MLC SSD
Expansion slot 1 x Mini-PCIe (full size)
DISPLAY
Display Type 15" TFT-LCD
Max. Resolution 1024 x 768
Max. Color 262K
Luminance (cd/m2) 1000
View Angle 160(H) /150(V)
Contrast 800:1
Backlight Lifetime 50,000 hrs
TOUCH SCREEN
Type Projected Capacitive Touch
Interface USB
Light Transmission(%) 90%
POWER
Power Input DC 9~36V
Power Consumption 21W
MECHANICAL
Construction 316 stainless steel chassis
Mounting VESA mount 100 x 100, Panel mount (option)
IP Rating Total IP66
Dimensions 399 x 324 x 70 mm
Net Weight 9.6 kg

ENVIRONMENTAL
Operating Temperature -20~60°C
Storage Temperature -30~70°C
Humidity 10 to 95% @ 40°C, non-condensing
Safety CSA C22.2 No.61010
Certificate CE / FCC Class A
ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987
OPERATING SYSTEM WINDOWS 11 PRO
