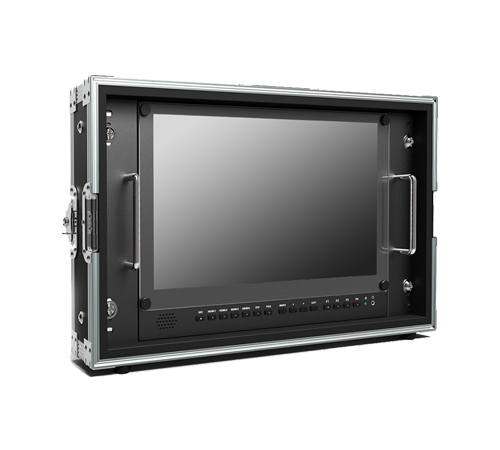

15.6" Panel Carry-On 4K Monitor 6U Racking Mounting w/ 4xHDMI (1xHDMI 2.0, 3xHDMI 1.4), DVI, VGA, 3G-SDI, TALLY (Model: LNP6156K-3G)
15.6" Panel Carry-On 4K Monitor 6U Racking Mounting with 3840x2160 resolution, 330nits, 1000:1, 176°/176° viewing angle w/ Input Ports: 4xHDMI (1xHDMI 2.0, 3xHDMI 1.4), DVI, VGA, 3G-SDI, TALLY
Main Feature
- Input Ports: 4xHDMI (1xHDMI 2.0, 3xHDMI 1.4), DVI, VGA, 3G-SDI, TALLY, Audio L/R, USB
- (Loading 3D-LUT), DC (XLR), Output Ports: 3G-SDI, earphone jack
- HDMI 2.0 supporting 4K 60Hz, 3xHDMI 1.4 supporting up to 4K 30Hz
- Wireless HDMI for optional, Supporting 3D-LUT loading, with 3 user logs
- Functions: Adjustable Color space, HDR (HDMI 1), Quad view, Time code, etc.
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
DISPLAY |
Display Screen | 15.6" 8bit |
| Physical Resolution | 3840x2160, 4K | |
| Aspect Ratio | 16:9 | |
| Brightness | 330cd/m˛ | |
| Contrast | 1000:1 | |
| Viewing Angle | 176°/176°(H/V) | |
INPUT |
3G-SDI | 1 |
| Wireless HDMI | 1 (optional) | |
| HDMI | HDMI 2.0x1 (4K@60Hz) HDMI 1.4x3 (4K@30Hz) | |
| DVI | 1 | |
| VGA | 1 | |
| USB | 1 (3D-LUT) | |
| Audio | 2 (L/R) | |
| TALLY | 1 | |
OUTPUT |
3G-SDI | 1 |
AUDIO |
Speaker | 1 |
| Ear Phone Slot | 1 | |
POWER |
Current | 1.2A (15V) |
| Input Voltage | DC 12-24V (XLR) | |
| Battery Plate | V-mount / Anton Bauer mount | |
| Power Consumption | ?18W | |
ENVIRONMENT |
Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C | |
DIMENSION |
Dimension(LWD) | 389x267x38mm / 524x305x170mm (with case) |
| Weight | 3.4kg / 12kg (with case) | |
SDI Format |
SMPTE-125M | 480i(59.94) |
| SMPTE-274M | 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) |
|
| SMPTE-292M | 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | |
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) 720p(60/59.94/50) |
|
| SMPTE-372M | 1080i(29.97/25/24/23.98) 1080p(60/59.94/50/30/29.97/25/24/23.98) |
|
| SMPTE-425M | 1080p(60/59.94/50) | |
| ITU-R BT.656 | 576i(50) | |
HDMI Format |
4K | 4096x2160 / 3840x2160 |
| Other | 1080p, 1080i, 720p, 720i, 480p ... |
