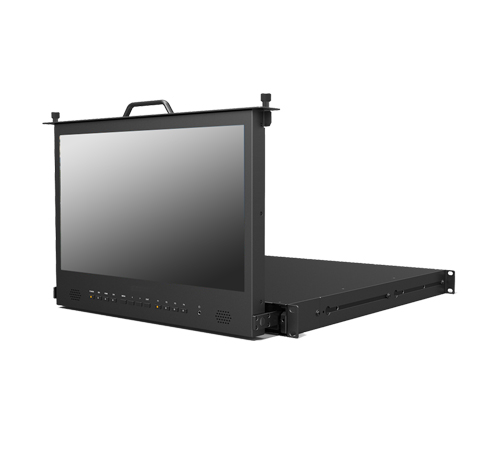

15.6" Panel 12G-SDI 4K Monitor 6U Racking Mounting w/ 4xHDMI (1xHDMI 2.0, 3xHDMI 1.4), DVI, VGA, 3G-SDI, TALLY (Model: LNP6156K-12G)
15.6" Panel 12G-SDI 4K Monitor 6U Racking Mounting with 3840x2160 resolution, 330nits, 1000:1, 176°/176° viewing angle w/ Input Ports: 4xHDMI (1xHDMI 2.0, 3xHDMI 1.4), DVI, VGA, 3G-SDI, TALLY
Main Feature
- Input Ports: 4xHDMI (1xHDMI 2.0, 3xHDMI 1.4), DVI, VGA, 3G-SDI, TALLY, Audio L/R, USB
- (Loading 3D-LUT), DC (XLR), Output Ports: 3G-SDI, earphone jack
- HDMI 2.0 supporting 4K 60Hz, 3xHDMI 1.4 supporting up to 4K 30Hz
- Wireless HDMI for optional, Supporting 3D-LUT loading, with 3 user logs
- Functions: Adjustable Color space, HDR (HDMI 1), Quad view, Time code, etc.
X
Inquiry/Quote Request
- Specifications
- Download
- Contact Sales
DISPLAY |
Display Screen | 15.6" 8bit |
| Physical Resolution | 38402160, 4K | |
| Aspect Ratio | 16:9 | |
| Brightness | 330cd/m˛ | |
| Contrast | 1000:1 | |
| Viewing Angle | 176°/176°(H/V) | |
INPUT |
12G-SDI | 2 |
| 3G-SDI | 2 | |
| HDMI | HDMI 2.01 (4K@60Hz) HDMI 1.43 (4K@30Hz) | |
| HDMI wireless | 1 (optional) | |
| TALLY | 1 | |
OUTPUT |
12G-SDI | 2 |
| 3G-SDI | 2 | |
AUDIO |
Speaker | 1 |
| Ear Phone Slot | 1 | |
POWER |
Current | 2.1A (15V) |
| Input Voltage | DC 12-24V (XLR) | |
| Battery Plate | V-mount / Anton Bauer mount | |
| Power Consumption | ?31.5W | |
ENVIRONMENT |
Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C | |
DIMENSION |
Dimension(LWD) | 38926738mm / 524305170mm (with case) |
| Weight | 3.4kg / 12kg (with case) |
