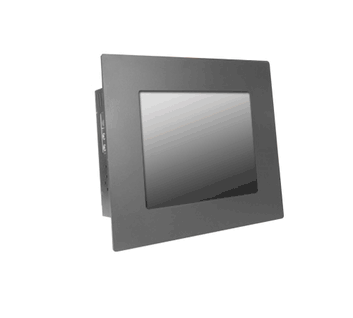

13.3" Industrial Panel Mount Fanless Design, JNC8H-H310, i7-9700TE w/ Win 11 Pro 64bit (Model: CPMW1330-i7-PCAP)

13.3" Industrial Panel Mount (3mm Front Bezel) Fanless Design, 1920x1080, 400nits, AUO, G133HAN01.0, JNC8H-H310, i7-9700TE, / RAM 32GB / SSD 512GB ( M.2 ), Supported TPM 2.0, 24VDC / 160W power adapter, Win 11 Pro 64bit

13.3" Industrial Panel Mount (3mm Front Bezel) Fanless Design, 1920x1080, 400nits, AUO, G133HAN01.0, JNC8H-H310, i7-9700TE, / RAM 32GB / SSD 512GB ( M.2 ), Supported TPM 2.0, 24VDC / 160W power adapter, Win 11 Pro 64bit

CPMW1330-i7-PCAP
  • Overview
  • Specifications
  • Download

Features:

  • 13.3" industrial panel / 1920x1080 / 400nits /AUO /G133HAN01.0
  • Panel Mount ( with 3mm front bezel ) / clamp with VESA mount
  • Fanless design
  • JNC8H-H310 / i7-9700TE ( 9th Generation Intel Core i7 / 12M Cache, up to 3.80 GHz ) RAM 32GB / SSD 512GB ( M.2 )
  • Supported TPM 2.0
  • 24VDC / 160W power adapter
  • Win 11 Pro 64bit

LCD Specifications

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 13.3" viewable diagonal area
Active Area 295.50(H) x 167(V) mm
Native Resolution 1920(H) x 1080(V)
Brightness / Contrast 400 cd/m2 (typ) / 700 : 1
Response Time < 35 ms
Viewing Angle (typical) H. 170° (- 85° ~ + 85°) , V. 170° (- 85° ~ + 85°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Power Power Input 24VDC / 160W power adapter
Touch P-CAP Touch
IP Front IP65
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD


Motherboard Specifications

Form Factor
Dimensions - Thin Mini ITX ( 170 * 170mm)
Processor System
CPU - Intel LGA1151 Series Processor (Max. 65W)
Core Number - by CPU
Max Speed - by CPU
L2 Cache - by CPU
Chipset -H310
BIOS -AMI 128M Flash ROM
Expansion Slot
M.2 -1 (E key 2230,Support CNVi)
-1 (M Key 2242)
SATA -1
PCI-e -1 * PCI-E x4 slot
Memory
Technology - Single channel DDR4 2133MHz DRAM
Max. -64GB
Socket -2*SO-DIMM
Graphics
Controller - Intel HD Graphics
VRAM - Shared Memory
VGA -1 (Max. Resolution: 1920xl200@60Hz)
LVDS -1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz)
eDP1.3 -1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz)
HDMI 1.4 -1 (Max Resolution : 4096x2160@30Hz)
Multi Display - Dual Display
Ethernet
Ethernet -10/100/1000 Mbps
Controller - Intel 1219-V + i211AT Gigabit LAN
Connector - 2* RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - Line-Out, MIC
SATA
Max Data Transfer Rate -1* SATAN III (6.0Gb/s)

Rear I/O
VGA -1
HDMI -1
Ethernet -2
USB -4* USB 3.0
Audio -1 (Line-out, MIC)
DC-input -1
Internal Connector
USB -5 (USB 2.0)
PS/2 -1
LVDS / inverter -1 (Co-lay eDP)
eDP -1
Serial - 4 (COM1/2 Support 5V/12V TTL)
SATA -1* SATAN III (6.0Gb/s)
M.2 - 2 (M key + E key)
GPIO -1 (8 bit)
Chassis intrusion -1
Audio Header -1
SMBUS/I2C -1
AT mode -1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments (lOsec ~ 255min)
Power Requirements
Input PWR -12 ~ 24V DC-in
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
Environment
Temperature - Operating: 0°C~60°C
  - Storage: -20°C~85°C
Warranty
Warranty - 2 Years Limited Warranty
Packing
Packing - Net Weight:
- Gross Weight:
- Color Box dimension: 362*290.5*65mm
