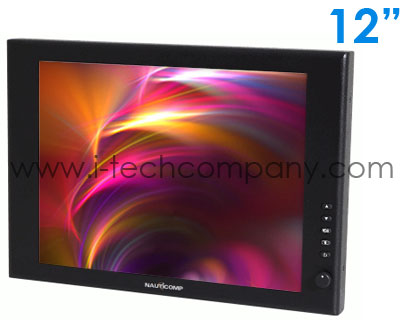

12.1" Signature Series ll Display– LED, 750 Nits (Front OSD Control/Front Mount) (Model: 26-1210)

12.1" Signature Series ll Display– LED, 750 Nits (Front OSD Control/Front Mount) (Model: 26-1210)

26-1210
  • Overview
  • Specifications
  • Download
The Signature II Series line of displays combines all of today’s cutting edge technology with ease of use. This completely re-designed product includes our famous dim to red technology on all inputs. A slim case design so today’s mariner can put a larger display into a more confined helm space and a dial for detailed dimming and brightness settings on the fly. A combination of 6 inputs 1 DVI, 2 VGA and 3 Composites on the available 12.0”, 15.0”, and 19.0”, puts the Signature II Series at the top of the pack for its industry sector.

Product Features
  • Sunlight Readable - Ready for all environments
  • Waterproof - Built to Stringent IP67 Standards
  • Bonded Glass - Optically Enhanced for clarity
  • Multiple Inputs - DVI, VGA, NTSC, PAL, SEC AM
  • Deep Dimming - 0 to 100% via “Potentiometer”
  • Superior Image - Scalable resolution up to SXGA
  • LED Backlighting - Reduces Power draw at all levels
  • Extended Temperature Range - on 12” & 15” Models
  • Picture in Picture - Designed to display ALL inputs
Electrical Description

Display Characteristics:
Type: 12.1” Active Matrix TFT
Dot Number: 1024 x 768 Pixels
Dot Pitch: 0.240mm
Response Time: 23ms Average– Typical
Contrast Ratio: 700:1 Min.
Brightness / Light Intensity: 750 cd/m˛ (Enhanced for Sunlight Readability)
Viewing Angles (at CR>10): 80o Left/Right, 80o Up/ Down
Backlight Life: 25,000 Hours- Typical
Colour Depth: 16.7 Million (Depending on Graphics Card)
Dimming Circuit:
Range: Full Brightness to Black with “Dim to Red” at any level
DVI-I Input:
Digital Interface: DVI 1.0 Compatible Interface
85Hz Operation
Analog RGB Input:
Analog Interface: 85 Hz Maximum Analog Bandwidth
0.5V to 1.0V Analog Input Range
Sync-on-Green (-ve) 0.3V
Composite Video Input:
Composite Interface: PAL, NTSC & SECAM with ‘Picture In
Picture’ PIP Facility
Synchronisation Range:
Horizontal Scan: 31.469-79.976 kHz*
Vertical Scan: 56-87 Hz*
*Depending on resolution
Resolutions:
VESA Support for: 1280 X 1024 SXGA
1024 x 768 XGA*
800 x 600 SVGA
640 x 480 VGA
*Recommended for optimised resolution...
Active Display Area:
Active Display Area: 245.76 mm x 184.32 mm
Input Voltage:
DC Input: 12.1V DC Regulated
Via External Power Supply - Refer to ordering codes...
Power Consumption: 1.25 A (15 W) Max.
Environmental:
*Operating Temp: -4 to +158°F / -20 to +70°C
Storage Temp: -13 to +167°F / -25 to +75 °C
Operating Humidity: 30% to 90% (Non-Condensing)
Storage Humidity: 10% to 90% (Non-Condensing)
Shock: 10g, 11msec ˝ Sine Wave
Vibration: +/-1mm, 2 to 13Hz: 0.7g 13 to 100 Hz
*We DO NOT recommend routine operation @ extreme temperatures...

Mechanical Description

Construction:
Finish: Black Fine Textured Semi Gloss Powder
Coat
Housing: Preformed Aluminium
Sealing: Waterproof NEMA 6 / IP67
Toughened Safety Glass : Bonded, Contrast Enhancing, Optically
Coated and Polarized
Ventilation: Convection
Mounting Style:
Surface (mm): Surface Mounted w/1.275” (32.37)
Protruding and Fastened with 4 8-32
Mounting Studs
Panel Cut-Out Size (mm): 10.262” (260.66) W X
7.783” (197.70) H
Dimensions:
Display (mm): 12.963” (329.26) W x 9.080” (230.64) H x 3.200” (81.28) D
Weight:
Weight (kg): 10 lbs (4.6)
Input Connectors: (rated @ NEMA 6 / IP67)
2x RGB Signal: 2 15 Pin Male Circular Connectors
1x DVI Signal: 19 Pin Male Circular Connector
3x Composite Signal: 6 Pin Male Circular Connector
Power: 2 Pin Male Circular Connector
Menu Controls:
Via Front Mounted Buttons: OSD Picture Features:
Size, Position, Colour and Input Selection
Brightness Control: Front Mounted Potentiometer
Approvals / Warranty
Compliance: CE: IEC60945 / CISPR22 / EN 55022
FCC: Part 15 Section 15.109
Limited Warranty: 3 Year
Ordering Codes
Standard Configuration:
12.1” Daylight Display: 26-1210
Please specify an external power supply from list below...
External Power Supply:
115/230V AC: 00-0301
12V DC: 00-0302
24V DC: 00-0303
Shipping Details:
Carton Size (cm): 2 1 ” ( 5 3 ) W x 20” (51) H x 10” (25) D
Weight (kg): 26 lbs (12)
