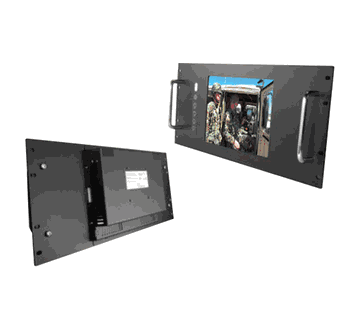

12.1" LCD Monitor, VGA Input, Front OSD and Handle with 5 Wire Resistive Touch (Model: ERM1210WTHB-TR)

12.1" LCD monitor, 800 x 600, 1000 nits VGA Input, Front OSD and Handle, VESA Mounting with 5 Wire Resistive Touch Screen and USB Controller (Model: ERM1210WTHB-TR)

12.1" LCD monitor, 800 x 600, 1000 nits VGA Input, Front OSD and Handle, VESA Mounting with 5 Wire Resistive Touch Screen and USB Controller (Model: ERM1210WTHB-TR)

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV,SV,AV-Looping
    • Complete custom design/solution for OEM customers
ERM1210WTHB-TR
  • Specifications
  • Download
  • Contact Sales

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size 4:3 / 12.1" viewable diagonal area
Active Area / Pixel Pitch 246.0(H) x 184.5(V) mm / 0.3075(H) x 0.3075(V) mm
Native Resolution / Colors 800(H) x600(V) / 262 K
Brightness / Contrast 1000 cd/m2 (typ) / 600 :1
Response Time ^ 35 ms
Viewing Angle (typical) H. 140 (- 70 ~ + 70) , V. 120(-60 ~ + 60)
Light Source LED Backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh: 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W Speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 21.9 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity -30C ~ 70C (-22F ~ 158F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20C ~ 60C (- 4F ~ 140F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive (With glass) SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW SV + AV + TV Wide Temperature Motion Sensor
    Sun Light Readable Light Sensor
      Auto-Dimming
