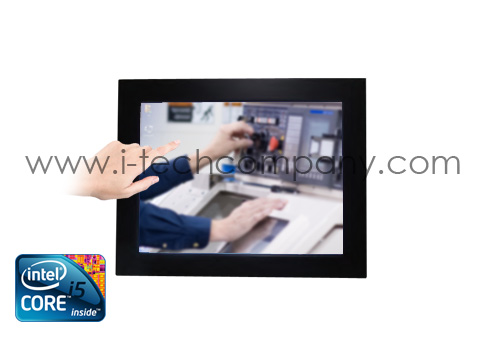

12.1" (4:3) Resistive Touch Fanless Panel PC, Front Panel Water Resistant, 0°C ~ 45°C temp. (Model: MPC1210-i5)

12.1" (4:3) Resistive Touch Fanless Panel PC, Front Panel Water Resistant, 0°C ~ 45°C temp. (Model: MPC1210-i5)

12.1" (4:3) Resistive Touch Fanless Panel PC, Front Panel Water Resistant, 0°C ~ 45°C temp. (Model: MPC1210-i5)

Inquiry/Quote Request
MPC1210-i5
  • Overview
  • Specifications
  • Download

Features:
  • 12.1" (4:3) LED backlight Industrial Panel PC
  • Intel Core i5-3317U Processor
  • One SO- DDR3 1333 DIMM slot , Support Max. 8G
  • 5-wire resistive type touch screen supported
  • 1*SATA for 2.5"HDD , 1* mSATA for SSD
  • 2COM(6 COM Option) + 4USB + 1*VGA + 2*Giga LAN
  • 1* HDMI + 1 x mPCIe space
  • WIFI 802.11 b/g/n (option)
  • 1x Internal USB2.0 for Keypro
  • OS support: Win7(e), Win XP(e), Win CE, Linux

LCD Specs
Size 12.1"
Resolution 1024 (W) x 768 (H)
Brightness (cd/m2) 500 cd/m2
Contrast Ratio 700:1
LCD color 262K / 16.2M
Pixel Pitch (mm) 0.240(H) x 0.240(V)
Viewing Angle (H-V) 160° (H) / 140° (V)
Backlight MTBF 30000 hrs (LED backlight)
TOUCH
Touch Screen 5-wire resistive type with USB Interface (PCAP Option)
Touch Controller EETI Touch kit
SYSTEM
CPU Intel Core i5-3317U Processor
Chipset Intel NM70
RAM Support one 1333 MHz SO-DDR3 DIMM slot (max. 8GB)
Ethernet 2*Realtek RTL8111E PCIe GbE controller supporting ASF 2.0
Audio Codec Realtek ALC662 HD audio codec
SSD mSATA
Input / Output 2 x RS-232 COM(6 COM Option) Port (DB-9)
     2 x GbE LAN (RJ-45)
     4 x USB2.0
    1 x Audio jack
    1 x MIC jack
    1 x VGA + 1 x HDMI		     1 x Power On button
    1 x DC input jack
    1 x DC input bypass terminal (Option)
    1 x internal USB2.0 for Keypro
Expansion Interface 1x mPCIe slot
System Cooling CPU Heatsink Fan Cooling
CONNECTIVITY
Wireless IEEE 802, 11b/g/n(Option)
Bluetooth Optional
PHYSICAL
Contruction Front Panel Optional Steel front frame and whole case
Mounting Panel,Stand, and VESA 100mm x 100mm, 75mmx75mm
Color Black
Dimensions (WxHxD)mm 311.8 x 246.8 x 85.8
Weight (N/G) Operation 4.2 kg
ENVIRONMENT
Operating Temperature (°C) 0°C ~ 45°C
Storage Temperature (°C) -20°C ~ 60°C
Humidity 10% to 95% (non-condensing)
POWER
Power Supply 60W power adapter Input: 90VAC~264VAC, 50/60 Hz, Output: 12VDC
Power Requirement 12 VDC
Power Consumption
CERTIFICATION
IP Level Front Panel IP64
Safety & EMC CE / FCC
