12.1" Open Frame LCD Monitor / 500 nits LED / VGA+DVI+HDMI / 2W speaker x2 (Model: SOP-112Y)

12.1" Open Frame / 1024x768 / 500 nits LED / VGA+DVI+HDMI Signal input / 2W speaker x2 / VESA Mount, The Power Consumptions is 12 Watts.

12.1" Open Frame / 1024x768 / 500 nits LED / VGA+DVI+HDMI Signal input / 2W speaker x2 / VESA Mount, The Power Consumptions is 12 Watts.

Inquiry/Quote Request
SOP-112Y
  • Overview
  • Specifications
  • Download

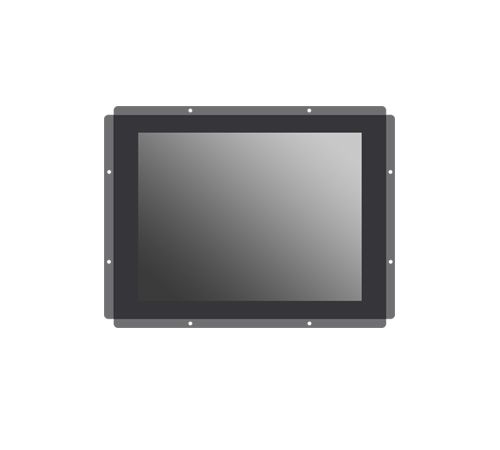

The SOP-112Y is a compact 12-inch open frame LCD monitor designed for seamless integration into a variety of professional applications including kiosks, digital signage, and industrial control systems. Featuring a built-in 2W speaker and high-quality display resolution, this monitor offers both visual and audio capabilities in a slim, space-saving form. Its open frame design allows for versatile mounting options, making it an ideal solution for environments that demand performance, durability, and integration flexibility.


Features:
  • High contrast TFT-LCD Monitor with support for resolutions up to 1024*768.
  • Power management system compliant with VESA DPMS and EPA Energy Star standards.
  • Universal power adapter for versatile compatibility.
  • Plug & Play compatibility supported via DDC1 & DDC2B.
  • Advanced OSD control for precise picture quality adjustment.
  • Adjustable stand for wall-mounting convenience.
  • Robust monitor built with a sturdy steel frame.
  • Custom design options available upon request.
Panel Type 12.1-inch TFT LCD
Screen Diagonal 12.1-inch
Active Display Area (mm) 245.76 (H) x 184.32 (V)
Number of Pixels 1024 x 768
Contrast Ratio 700:1
Display Color 16.7M/262K colors
Brightness 500nits
Viewing Angle(Typ.) 80 / 80 / 70 / 70 ( R/L/U/D)
Signal Connector 15 PIN D-Sub,DVI,HDMI
Power Source DC +12V(+/-10%)
Power Management VESA DPMS Compliant
Operating Temperature -30 ~ +80°C
Storage Temperature -30 ~ +80°C
Plug & Play VESA DDC 1/2B
Speaker 2 Watts x 2
