12.1" IP65/NEMA4 Panel Mount LCD Monitor, 1000nits w/ VGA+DVI+HDMI, 5-Wires Resistive Touch (Model: YPM1210PHB-TR)

IP65/NEMA4 Wide Temp Panel Mount (Aluminum-6mm), 12.1" LCD Monitor, 800x600, 1000nits LED VGA+DVI+HDMI Input, Rear OSD, including Rear Clamp Mount/VESA Mount + 5-Wires Resistive Touch screen with USB controller

IP65/NEMA4 Wide Temp Panel Mount (Aluminum-6mm), 12.1" LCD Monitor, 800x600, 1000nits LED VGA+DVI+HDMI Input, Rear OSD, including Rear Clamp Mount/VESA Mount + 5-Wires Resistive Touch screen with USB controller

Inquiry/Quote Request
YPM1210PHB-TR
  • Overview
  • Specifications
  • Download

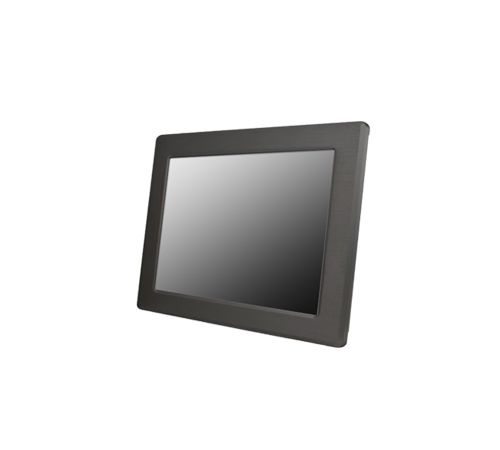

The YPM1210PHB-TR is a rugged 12.1-inch panel mount LCD monitor designed for industrial environments requiring durability and high visibility. With a 1000-nit high brightness display, IP65/NEMA 4-rated aluminum front bezel, and versatile input options including VGA, DVI, and HDMI, it ensures reliable performance in harsh conditions. Equipped with a 5-wire resistive touchscreen and USB controller, this monitor is ideal for applications needing accurate touch interaction and dependable mounting flexibility.


Features:
  • 12.1" LCD, 800x600 resolution
  • 1000 nits high brightness LED
  • 5-wire resistive touch with USB controller
  • IP65/NEMA 4, 6mm aluminum bezel
  • VGA, DVI, HDMI inputs
  • Rear OSD control
  • Rear clamp and VESA mount ready
  • Wide operating temperature range
Panel Type 12.1-inch TFT LCD
Screen Diagonal 12.1-inch
Active Display Area (mm) 245.76 (H) x 184.32(V)
Display Color 262K/16.2M colors
Number of Pixels XGA(1024 x 768)
Contrast Ratio 700: 1
Brightness (cd/m˛) 1000 cd/m˛
Viewing Angle(Typ.) 80/80/70/70
Signal Connector VGA+DVI+HDMI
Power Management VESA DPMS Compliant
Operating Temperature -20 ~ +60°C
Storage Temperature -20 ~ +60°C
