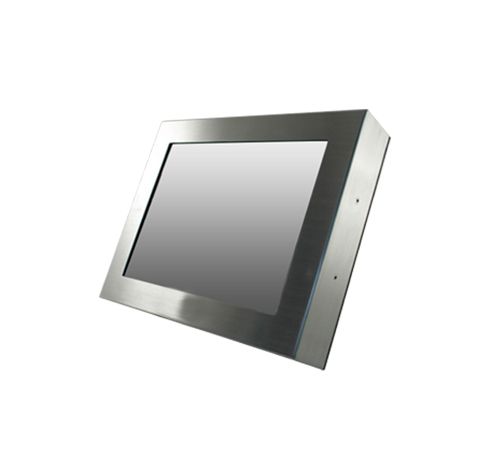

12.1" 1000nits Full IP66 Stainless Steel Chassis LCD Monitor w/ HDMI, DC 9~36V (Model: SCH1210AHB-SIPY)
Rugged Completely Sealed IP66/NEMA4X Stainless Steel Chassis/Surface/Rear/VESA Mount, Water/Dust Proof 12.1" Full IP66 Stainless Steel Chassis LCD Monitor / 1024x768 / 1000nits LED / AR Coating Protective Glass / HDMI Signal Input / DC 9~36V Power Input / VESA Mount
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The SCH1210AHB-SIPY is a rugged 12.1-inch LCD monitor housed in a completely sealed stainless steel chassis with IP66/NEMA 4X protection. Designed for demanding industrial, food processing, marine, or washdown environments, it delivers 1000 nits of brightness, AR-coated protective glass, and supports HDMI signal input and wide-range DC 9~36V power. With versatile mounting options including VESA, rear, and surface mount, this display is built for reliable performance in the harshest conditions. |
Features: |
|
| Screen Diagonal | 12.1-inch |
| Active Display Area (mm) | 265.76 (H) x 184.32 (V) |
| Pixel Pitch (mm) | 0.24 x 0.24 |
| Number of Pixels | 1024x768 |
| Contrast Ratio | 700:1 |
| Display Color | 16.2M / 262K colors |
| Brightness (cd/m) | 1000 nits |
| Viewing Angle(Typ.) | 89 / 89 / 89 / 89 ( R/L/U/D) |
| Signal Connector | HDMI |
| Power Source | DC 9~36V |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
| Touch Type | Optional |
