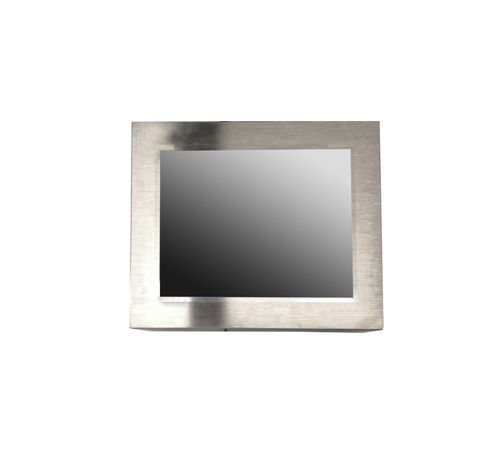

12.1" Full IP66 Stainless Steel Chassis LCD Monitor, 1024x768, 1000nits, VGA + DVI, 12VDC Input, AR Glass (Model: CCH1210XHBWT-SIP)
High Brightness Rugged Completely Sealed Full IP66/NEMA4X 12.1" Stainless Steel Chassis LCD Monitor, 1024x768, 1000nits, VGA+DVI, 12VDC Input, AR Glass, VESA Mounting
X
Inquiry/Quote Request
- Overview
- Specifications
- Download
| The 12-inch Full IP66 Stainless Steel Chassis LCD Monitor (Model: CCH1210XHBWT-SIP) from iTech is designed for demanding industrial and outdoor applications where reliability and durability are essential. Built with a rugged stainless-steel housing, this display offers complete protection against dust and water, making it ideal for food processing, marine, and factory automation environments. Its high-brightness LCD panel ensures clear visibility even under direct sunlight, while the wide temperature operation supports stable performance in extreme conditions. |
Features: |
|
| Display | Viewing Size Image | 12.1" |
| Active Display Area (mm) | 245.76 (H) x 184.32 (V) | |
| Pixel Pitch (mm) | 0.240(H)x0.240(V) | |
| Resolution | 1024 x 768 | |
| Contrast Ratio | 700: 1 (typ.) | |
| Color | 262K,16.2M (6bit/colors) | |
| Brightness | 1000 cd/m2 | |
| Viewing Angle | -80~80 (H) ; -80~80 (V) | |
| Recommended Resolution | 1024 x 768 @ 60Hz, 75Hz | |
| Signal Connector | VGA,DVI | |
| Power | Source | 12V DC in |
| Consumption | 20W typical, normal operation | |
| Management | VESA DPMS Compliant |
