12.1" Front IP65 Touch Panel PC w/ JNC8H-H310, i5-8500T, RAM 32GB, SSD 500GB, Win 11 Pro (Model: CPM1210-AB6)

12.1" LCD Monitor, 1024x768, 1000nits, 24VDC with Terminal Block, P-CAP Touch / Front IP65 + JNC8H-H310 / i5-8500T, RAM 32GB / SSD 500GB Win 11 Pro 64bit Installation

12.1" LCD Monitor, 1024x768, 1000nits, 24VDC with Terminal Block, P-CAP Touch / Front IP65 + JNC8H-H310 / i5-8500T, RAM 32GB / SSD 500GB Win 11 Pro 64bit Installation

Inquiry/Quote Request
CPM1210-AB6
  • Overview
  • Specifications
  • Download
The CPM1210-AB6 is a rugged 12-inch front IP65 touch panel PC designed for demanding industrial and commercial applications. Engineered with a fanless design and an aluminum front bezel, it delivers durability, reliability, and resistance to dust and water ingress. Powered by the Intel Celeron N3350 processor, this panel PC offers efficient performance while maintaining energy efficiency—perfect for automation, kiosks, factory control systems, and more.


Features:
  • 12.1" Industrial Panel / 1024 x 768 / 1000nits ( Backlight modified )
  • Panel Mount ( with 3mm front bezel ) / clamp design
  • P-CAP Touch / Front IP65
  • Fanless Design
  • Operation Temp. : 0C to 60C (-32F to 140F )
  • All Black Powder Coating
  • JNC8H-H310 / i5-8500T ( 9M Cache, up to 3.50GHz, 8th Generation Intel Core i5 Processor ) / RAM 32GB / SSD 500GB
  • 24VDC with Terminal Block "+" / "-" and 24VDC / 120W power adapter for testing
  • Win 11 Pro 64bit installation

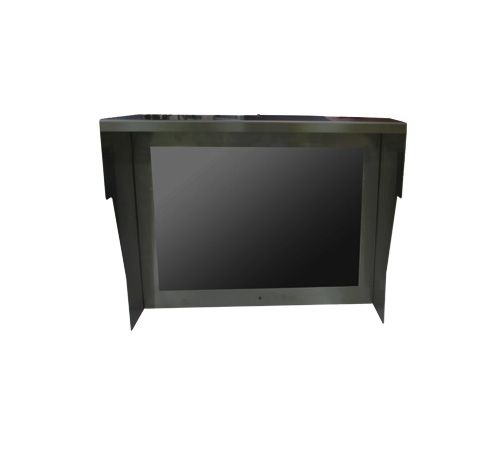

  • Sun Hood: ( Up/Left/Right 3 pcs )
  • Blanket heater (12VDC / 24W) with Temp. Sensor Control / working Temp. / -5C to 60C (-23F to 140F )

LCD Specs:
Display Viewing Size Image 12.1"
Active Display Area (mm) 249 (H) x 187 (V)
Pixel Pitch (mm) 0.3075 x 0.3075
Resolution 1024 x 768
Contrast Ratio 700 : 1 (typ.)
Color 262,144K
Brightness 1000 nits
Viewing Angle -89~89(H) ; -89~89 (V)
Recommended Resolution 1024 x 768 @ 60Hz, 75Hz
Temperature Operating Temp 0C to 60C (-32F to 140F )
Power Source 24VDC with Terminal Block "+" / "-" and 24VDC / 120W power adapter for testing
Management VESA DPMS Compliant
Consumption 6.5W typical , normal operation


Motherboard Specs:
Form Factor
Dimensions - Thin Mini ITX ( 170 * 170mm)
Processor System
CPU - Intel LGA1151 Series Processor (Max. 65W)
Core Number - by CPU
Max Speed - by CPU
L2 Cache - by CPU
Chipset -H310
BIOS -AMI 128M Flash ROM
Expansion Slot
M.2 -1 (E key 2230,Support CNVi)
-1 (M Key 2242)
SATA -1
PCI-e -1 * PCI-E x4 slot
Memory
Technology - Single channel DDR4 2133MHz DRAM
Max. -64GB
Socket -2*SO-DIMM
Graphics
Controller - Intel HD Graphics
VRAM - Shared Memory
VGA -1 (Max. Resolution: 1920xl200@60Hz)
LVDS -1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz)
eDP1.3 -1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz)
HDMI 1.4 -1 (Max Resolution : 4096x2160@30Hz)
Multi Display - Dual Display
Ethernet
Ethernet -10/100/1000 Mbps
Controller - Intel 1219-V + i211AT Gigabit LAN
Connector - 2* RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - Line-Out, MIC
SATA
Max Data Transfer Rate -1* SATAN III (6.0Gb/s)

Rear I/O
VGA -1
HDMI -1
Ethernet -2
USB -4* USB 3.0
Audio -1 (Line-out, MIC)
DC-input -1
Internal Connector
USB -5 (USB 2.0)
PS/2 -1
LVDS / inverter -1 (Co-lay eDP)
eDP -1
Serial - 4 (COM1/2 Support 5V/12V TTL)
SATA -1* SATAN III (6.0Gb/s)
M.2 - 2 (M key + E key)
GPIO -1 (8 bit)
Chassis intrusion -1
Audio Header -1
SMBUS/I2C -1
AT mode -1
Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments (lOsec ~ 255min)
Power Requirements
Input PWR -12 ~ 24V DC-in
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
Environment
Temperature - Operating: 0°C~60°C
  - Storage: -20°C~85°C
Warranty
Warranty - 2 Years Limited Warranty
Packing
Packing - Net Weight:
- Gross Weight:
- Color Box dimension: 362*290.5*65mm
