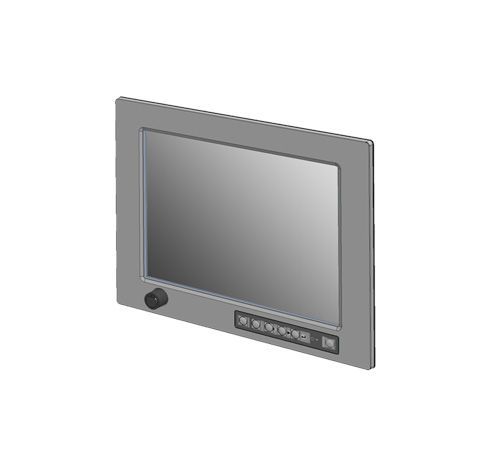

12.1" Front IP65 Marine Bridge Display Monitor w/ HDMI, DVI-D VGA, Composite Video, 9~36VDC, Resistive Touchscreen (Model:AMAR1210-DC-TR)
Front IP65 12.1" Marine Bridge Display Monitor 1024x768 500nits, HDMI, DVI-D VGA, Composite Video, Audio Input, IEC60945 Certificated Front Hyper Dimming Knob Control Backlight Brightness from Nearly 0%-100%, 9~36V DC Power with Terminal Block Input + with Resistive Touchscreen (USB)
AMAR1210-DC-TR
- Overview
- Specifications
- Download
| TFT Characteristics: |
| Screen Size |
12.1-inch TFT LCD |
| Backlight Type |
LED |
| Resolution |
1024 x 768 |
| Contrast Ratio |
1000:1 |
| Brightness ( cd/m2 ) |
500 nits |
| View Angles ( H/V ) |
178/178 |
| Max. Color |
16.2M |
|
| |
| Input Signals: |
| HDMI Signal |
HDMI (Female) |
| DVI Signal |
DVI-D (Female) |
| VGA Signal |
D-SUB 15P connector (Female) |
| Composite Video |
RCA Phono plug |
| Audio |
3.5" jack |
| DC Power Input |
Screw Terminal Block |
| AC Power Input ( option ) |
Standard IEC Inlet |
| Touch Screen ( option ) |
USB-A connector (Female) |
|
| |
| Power Specifications: |
| DC Power Input |
Screw Type Terminal Block with internal 9~36V wide DC power module |
|
| |
| Mechanical and Environmental: |
| IP Protect |
Front IP65 Grade |
| Mounting |
Panel (Flush) Mount |
| Construction |
Alminum Front Bezel + Metal Housing |
| Operating Temperature |
0 - 50 deg. C |
| Operating Humidity |
5% - 95% ( non -condensing ) |
| Anti-Vibration |
5 - 500 Hz / 1 Grms PTP |
| Anti-Shock |
15G / Peak ( 11 ms ) |
| Physical Dimension (WxHxD) |
320 x 258.5 x 67 mm |
| Packing Dimension (WxHxD) |
450 x 380 x 200mm |
| Net Weight / Gross Weight |
3.5 / 6.5 KG |
| Certification and Approvals |
IEC60945 |
|
| |
| User Controls: |
| Power On/Off via front buttons |
| VR Brightness Knob adjustment |
| Power Mode Status LED indicator |
| On Screen Display control(OSD) |
|
