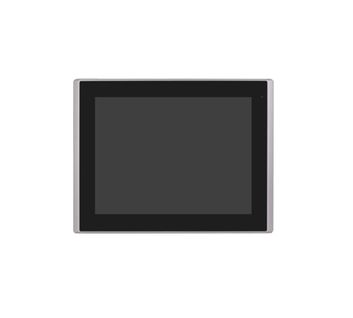

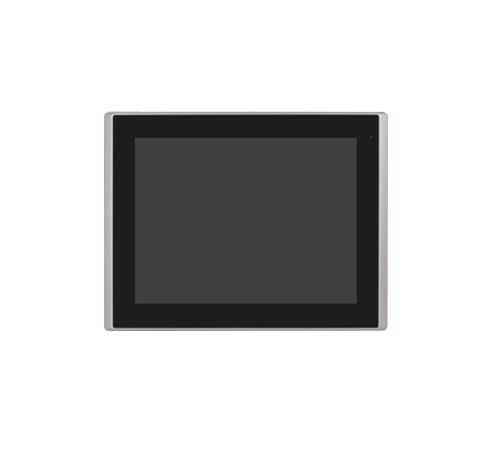

12.1" Aluminum Chassis Fanless HMI Barebone w/ Intel Celeron J6412, 32GB, M.2 128GB, PCT Touch, POE+ (Model: AHM1210HB-J-POE)
12.1" SVGA/XGA Fanless HMI Barebone with Intel Celeron J6412 (2.0 GHz) CPU, 1x DDR4 Slot, Projected Capacitive Touch, 9~36VDC input with Adapter, Aluminum Chassis.
AHM1210HB-J-POE
- Overview
- Specifications
- Download
| System |
| CPU |
Intel Celeron J6412 Processor (2.0 GHz, 1.5MB L2 cache) |
| System Chipset |
SoC |
| Memory |
32GB DDR4 2133/2400/2666/3200 SO-DIMM (-40~85) |
| TPM |
TPM 2.0 |
| I/O Port |
| USB |
2 x USB 3.2 Gen2 type A
2 x USB 2.0 type A |
| Serial / Parallel |
1 x RS-232/422/485 (Default RS-232; select via BIOS) |
| Audio |
1 x Audio Line Out |
| LAN |
2 x 2.5GbE LAN RJ-45 |
| DP |
1 x DP, support DP++ |
| Power |
1 x 3-pin Terminal Block Connector
1 x 2-pin Power Switch Connector |
| Option |
VESA Stand
4G LTE/Wi-Fi 4/5/6+/Bluetooth
4 x USB 2.0 type A (TB-528U4)
4 x USB 2.0 type A + 1 x Mini-PCIe + 1 x SIM slot (TB-528U4ME1)
2 x COM (RS-232) (TB-528C2)
1 x COM (RS-232) + 2 x USB 2.0 (TB-528C1U2)
1 x COM (RS-232) + 2 x USB 2.0 + 1 x Power Button (TB-528C1U2P1)
2 x COM (RS-232) + 1 x Mini-PCIe slot + 1 x SIM slot (TB-528C2ME1)
2 x COM (RS-422/485, isolated) (TB-528C2I)
2 x CAN (TB-528CAN2)
1 x LAN + 2 x USB 2.0 type A (TB-528E1U2)
1 x 2W Speaker
1 x Auto Dimming
1 x Backup Battery 21W/10.8V/1.95Ah(3S1P) |
| Storage Space |
| Storage |
M.2 2242 B+M KEY/SATA3/TLC/128GB/TRANSCEND/TS128GMTS560T-I/BiCS 5/-40~85DEGREE |
| Expansion |
| Onboard Expansion Bus |
1 x Mini-PCIe slot (full size)
1 x M.2 E-key
1 x Nano SIM Card Holder |
| Display |
High Brightness |
| Display Type |
12.1" TFT-LCD |
| Max. Resolution |
1024x768 |
| Max. Color |
16.2M |
| Luminance (cd/m2) |
10000 |
| View Angle |
178(H) / 178(V) |
| Contrast |
1000:1 |
| Backlight Lifetime |
70,000 hrs |
| Touch Screen |
| Type |
Projected Capacitive Touch |
| Interface |
USB |
| Light Transmission(%) |
Projected Capacitive Touch: 90% |
|
| |
| Power |
| Power Input |
DC 9~36V |
| Power Consumption |
40W |
| Mechanical |
| Construction |
Aluminum Chassis |
| Mounting |
Panel Mount, VESA 100 x 100 |
| Dimensions (WxHxD) |
319 x 245 x 51.7 mm |
| IP Rating |
IP66 Compliant Front Bezel |
| Net Weight |
2.73kg |
| Environmental |
| Operating Temperature |
-20~60˚C |
| Storage Temperature |
-30~70˚C |
| Humidity |
10 to 95%@ 40˚C, non-condensing |
| Certificate |
CE/FCC class B/UL |
| Operating Support |
| Windows 11 IoT Enterprise Entry PKEA |
|
