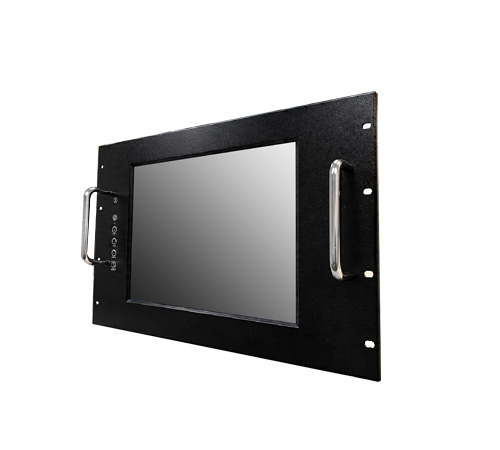

10U 20.1" Military Grade Rackmount LCD w/ NGV Compatibility, 9~36VDC via M12 Connector (Model:EMR2010N1)

10U 20.1" 1600x1200, 400nits Military Grade Rackmount LCD with NGV Compatibility, 9~36VDC via M12 Connector

10U 20.1" 1600x1200, 400nits Military Grade Rackmount LCD with NGV Compatibility, 9~36VDC via M12 Connector

Inquiry/Quote Request
EMR2010N1
  • Overview
  • Specifications
  • Download
The EMR2010N1 20.1" 10U Military-Grade Rackmount LCD Monitor is designed for demanding military, defense, vehicle, and specialized industrial applications where rugged construction and reliable display performance are essential. It features a 1600 x 1200 resolution, 4:3 aspect ratio, and 400-nit LED backlight, providing clear and detailed image reproduction in professional operating environments.

Designed with NVG compatibility and selectable day/night modes, the EMR2010N1 is suitable for applications requiring compatibility with night-vision equipment. Its 9~36VDC power input through an M12 connector supports integration into vehicle and military power systems, while VGA and NTSC/PAL AV inputs provide flexible connectivity.

The monitor is designed to meet demanding military requirements, with compliance to MIL-STD-461E, MIL-STD-901, MIL-STD-810, and MIL-STD-167. Combined with its 10U rackmount form factor, anti-glare low-reflection surface, and ruggedized design, the EMR2010N1 provides a dependable display solution for military vehicles, command and control systems, defense equipment, naval applications, and other mission-critical environments.

Features:
  • 20.1" Military-Grade 10U Rack-Mount LCD Monitor - 1600 x 1200 Resolution, 400 nits LED Backlight
  • I/O (M12) - VGA, AV (NTSC/PAL) Inputs
  • NVG Compatibility - Supports Night/Day Modes
  • Power - 9~36VDC via M12 Connector
  • Military Compliance - MIL-STD-461E, MIL-STD-901, MIL-STD-810, MIL-STD-167
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4 : 3
Size 20.1" viewable diagonal area
Active Area 408(H) x 306(V) mm
Pixel Pitch 0.255(H) x 0.255(V) mm
Native Resolution 1600(H) x 1200(V)
Colors 16.7M
Brightness 400
Contrast 1000 : 1
Response Time ≤ 8 ms (G-to-G)
Viewing Angle (typical) H. 160°(- 80°~ + 80°) , V. 160°(- 80°~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
VGA, AV(NTSC/PAL) Inputs
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Power 9-36V DC (M12)
POWER CONSUMPTION
Operation / Power Saving ( Operation / Power Saving ) undefined
OPERATING CONDITION
Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -20°C ~ 60°C (-4°F ~ 140°F) , 10% ~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 2.0 Kgs/3.0 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
