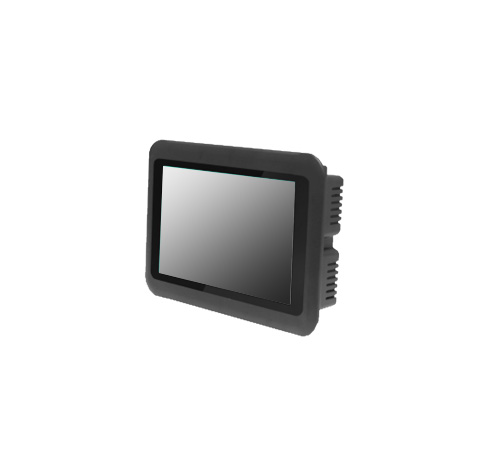

10.1" WXGA Zero Bezel True Flat LCD Monitor, 1280x800, 300nits, 800:1, 30ms with PCT Touch (Model: EZBW1010WT-PCT)

10.1" WXGA Zero Bezel True Flat LCD Monitor, 1280 x 800, Brightness : 300nits , Contrast: 800:1, Response Time: : 30ms, Viewing Angle: 160 / 160

10.1" WXGA Zero Bezel True Flat LCD Monitor, 1280 x 800, Brightness : 300nits , Contrast: 800:1, Response Time: : 30ms, Viewing Angle: 160 / 160

Main Feature

    • Modularize mechanical design provides flexible product configuration and easy maintenance
    • Optional build-in touch screen for interactive application
    • Available with auto-brightness sensor offers application in day and night
    • VGA connector with optional AV.SV.AV-Looping
    • With PCT touch
EZBW1010WT-PCT
  • Specifications
  • Download

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide /10.1" viewable diagonal area
Active Area / Pixel Pitch 216.96(H) x 135.6(V) mm / 0.1695(H) x 0.1695(V) mm
Native Resolution / Colors 1280(H) x800(V)/262 K
Brightness / Contrast 300 cd/m2 (typ) / 800 : 1
Response Time: < 16 ms
Viewing Angle (typical) H.160°(-80°~ + 80°) , V 160°(-80° ~ + 80°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp.p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv: 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-Sub), 1 x PC Audio (Stereo Headphone Jack), 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment, Plug&Play (VESADDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 8.25 watt, < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F), 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 30°C ~ 80°C (- 22°F ~ 176°F), 10% ~ 90% (no condensation)
Certification   FCC,CE
Dimensions Physical Please refer to Drawing
Carton WxHxD=TBD
Weight N.W./G.W. 3.5Kgs/4.5Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Projected CapacitiveTouch - MultiTouch(6mm Anti-Vandal glass) Transparency 90%±2%
Resolution 2048 x 2048
Support Points Dual Points
Touch Method Finger, gloved hand or any other pointer

Options Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
