10.4" Vehicle Grade Open Frame LCD Monitor w/ VGA, DVI, HDMI, PCAP Touch 10 Points Compliance EN50155 (Model: ERO1040-TC)

10.4" LED-400nits Vehicle Grade Open Frame LCD Monitor with VGA, DVI, HDMI, Built-In PCAP Touch 10 Points Touch (USB), Compliance EN50155

10.4" LED-400nits Vehicle Grade Open Frame LCD Monitor with VGA, DVI, HDMI, Built-In PCAP Touch 10 Points Touch (USB), Compliance EN50155

Inquiry/Quote Request
ERO1040-TC
  • Overview
  • Specifications
  • Download

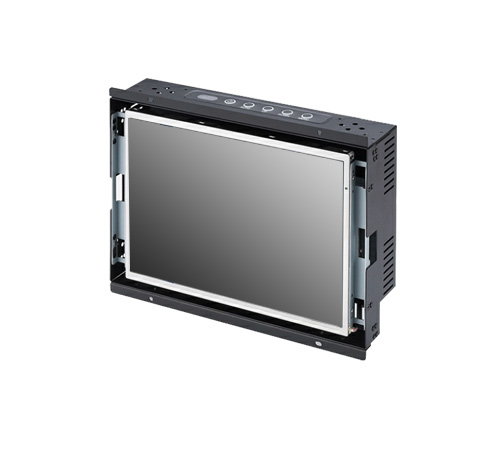

The 10.4-inch Vehicle Grade Open Frame LCD Monitor is a rugged display solution designed for vehicle, railway, transportation, and industrial applications. It features a 1024 x 768 resolution, 400-nit LED backlight, and wide 178°/178° viewing angles for clear and reliable image visibility.

Designed for demanding environments, the monitor supports a 10-point PCAP touchscreen, wide 9-36V DC power input, and an extended operating temperature range of -30°C to +70°C. With VGA, DVI, HDMI, and USB touch interfaces and EN50155 compliance, it provides a versatile and reliable display solution for transportation and vehicle-based systems.


Features:
  • Vehicle-Grade Open Frame 10.4" LCD Monitor - 1024 x 768, 400 nits LED, 178°/178° viewing angle
  • 10-Point PCAP Touchscreen - USB interface
  • Video I/O: VGA, DVI, HDMI
  • Power: 9-36V DC
  • Operating Temperature: -30°C to +70°C
  • Compliance: EN50155
  • Applications: Vehicle, railway, transportation, and industrial systems
Cell Type TFT LCD
Glass Surface Black Anti-Glare, low reflection coating
Aspect Ratio 4:3
Size 10.4" viewable diagonal area
Active Area 210.4(H) x 157.8(V) mm
Pixel Pitch 0.2055(H) x 0.2055(V) mm
Native Resolution 1024(H) x 768(V)
Colors 16.2 M
Brightness 400
Contrast 1000 : 1
Response Time ≤ 25 ms
Viewing Angle (typical) H. 178°(- 89°~ + 89°) , V. 178°(- 89°~ + 89°)
Light Source LED backlight, Long life, 35,000 hrs (typ)

CERTIFICATION
FCC , CE
INPUT TERMINALS
VGA, DVI, HDMI, USB(Touch)
CONVENIENT FEATURES
Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B) , OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
POWER
Power 9-36V DC
POWER CONSUMPTION
Operation / Power Saving 18 watt , < 2 watt (Support DPMS)
OPERATING CONDITION
Temperature / Humidity -30°C ~ 70°C (-22°F ~ 158°F) , 10%~ 90% (no condensation)
STORAGE CONDITION
Temperature / Humidity -30°C ~ 80°C (-22°F ~ 176°F),10%~ 90% (no condensation)
DIMENSIONS
Physical Please refer to Drawing
Carton W x H x D = TBD
WEIGHT
N.W. / G.W. 3.5 Kgs/4.5 Kgs
CONTAINER LOADED
20ft / 40ft / 40ft HQ TBD (Sets , By pallet)
