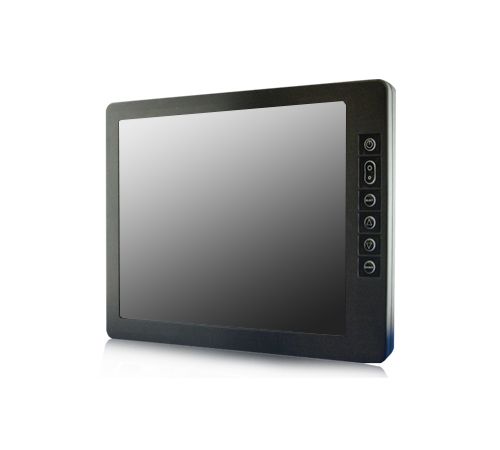

10.4" Rugged Display, RGB Input, 1000nits, Resistive Touch, IP67 Sealed, -30C to 80C (Model: DMM10400R-HB-TR)
Rugged Mil Spec Monitor 10.4" LCD Monitor RGB Input, 1024x768, 1000nits Sealed to IP67 /NEMA 6 Standard, (8-36 VDC), -30C to 80C (-22F to 176F). External cables are not included. (Pin out will be provided) +5-Wire Resistive Touch with USB Controller
DMM10400R-HB-TR
- Overview
- Specifications
- Download
| LCD Size |
Resolution |
Nits |
Viewing Angle |
Contrast Ratio |
Maximum Power
Consumption |
| 10.4" TFT AM LCD |
XGA (1024x768) |
1000 nits |
160° (H) x 160° (V) |
600:1 |
20 Watts |
|
| |
| Technical Specifications |
| Display |
8-bit color, 16,777,216 colors. TFT AMLCD (Thin-Film Transistor Active-Matrix Liquid-Crystal Display) |
| Dimming Ratio |
3000:1 |
| Video Input |
VGA |
| Connectors* |
MIL-C Connectors |
| Housing |
Milled AL, Black Hard Anodized |
| Mounting |
Flush, Panel, Rack or RAM; Quoted individually. |
| Wide Range DC Power Input |
10-36 VDC (12,24,28 VDC nominal) |
| Power Conditioning |
Protected against Internal Short Circuit, Load Dump, Over Voltage and Reverse Polarity |
| Environmental Specifications |
| IP Rating |
IP67 (NEMA 6 Submersible) |
| Operating Temperature |
-40°C to 71°C (-40°F to 160°F); (-20°C (-4°F) with Touchscreen Option) |
| Storage Temperature |
-51°C to 71°C (-60°F to 160°F) |
| Humidity |
0-100% |
| Altitude |
45,000 ft. |
|
| |
| Military Specifications |
| MIL-STD-461 |
EMI |
MIL-STD-810 |
Method 512; Immersion |
| MIL-STD-704 |
Aircraft Power Requirements |
MIL-STD-810 |
Method 513; Acceleration |
| MIL-STD-810 |
Method 500; Altitude |
MIL-STD-810 |
Method 514; Procedure I, II, V, VI; General Vibration |
| MIL-STD-810 |
Method 501; I & II; High Temperature |
MIL-STD-810 |
Method 516; Procedure I, Functional Shock |
| MIL-STD-810 |
Method 502; I & II; Low Temperature |
MIL-STD-810 |
Method 520; Temp, Humidity, Vibe and Altitude |
| MIL-STD-810 |
Method 503; Temperature Shock |
MIL-STD-810 |
Method 523; Vibro-Acoustic/Temp |
| MIL-STD-810 |
Method 505; Solar Radiation |
MIL-STD-1275 |
Vehicle Power Requirements |
| MIL-STD-810 |
Method 506; Rain |
MIL-STD-1472 |
Thermal Contact Hazard |
| MIL-STD-810 |
Method 507; Humidity |
MIL-STD-3009 |
NVIS Compatible (Optional) |
| MIL-STD-810 |
Method 508; Fungus |
MIL-PRF-22885 |
Sunlight Readability for Push Buttons |
| MIL-STD-810 |
Method 509; Salt/Fog |
MIL-A-8625 |
Standard Finish, Type III, Class 1 & 2 |
| MIL-STD-810 |
Method 510; Blowing Sand and Dust |
MIL-PRF-22750 |
Painted Finish, Optional, Minimum Quantity Required |
|
