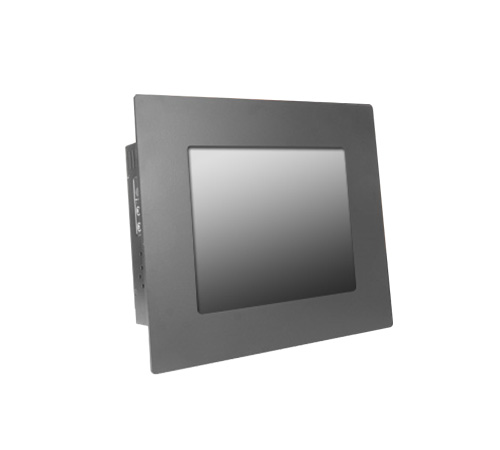

10.4" Panel Mount PC (3mm Front Bezel) 500nits w/ JNC8H-H310, i5-8500, RAM 8GB, SSD 128GB w/ Touch (Model: VPC1040CD-i5-C1)

10.4" Industrial Panel / 1024 x 768 / 500 nits Panel mount ( with 3mm front bezel ) / clamp mount and VESA mount, Resistive Touch / Front IP65 JNC8H-H310 / i5-8500 / RAM 8GB / SSD 128GB, Power input : 9-36VDC with Terminal Block, 24VDC / 160W power adapter for test, Win 10 64 bit Pro

Panel	Cell Type / Glass Surface	TFT LCD / Black Anti-Glare, low reflection coating
	Aspect Ratio / Size	4 : 3 / 10.4" viewable diagonal area
	Active Area / Pixel Pitch	213.50(H) x 160(V) mm / 0.2055(H) x 0.2055(V) mm
	Native Resolution / Colors	1024(H) x 768(V) / 16.2 M
	Brightness / Contrast	500 cd/m2 (typ) / 600 : 1
	Response Time	< 25 ms
	Viewing Angle (typical)	H. 160° (- 80° ~ + 80° ) , V. 140° (- 70° ~ + 70° )
	Light Source	LED backlight, Long life, 35,000 hrs (typ)
Power	Power Input	9-36VDC with Terminal Block w/ 24VDC / 160W Power Adapter for Test
Power	Power Consumption	29.5 Watt, <1 Watt
Operating Condition	Temperature / Humidity	0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Dimensions	Physical	Please refer to Drawing
Dimensions	Carton	W x H x D = TBD

Form Factor
Dimensions	- Thin Mini ITX ( 170 * 170mm)
Processor System
CPU	- Intel LGA1151 Series Processor (Max. 65W)
Core Number	- by CPU
Max Speed	- by CPU
L2 Cache	- by CPU
Chipset	-H310
BIOS	-AMI 128M Flash ROM
Expansion Slot
M.2	-1 (E key 2230,Support CNVi) -1 (M Key 2242)
SATA	-1
PCI-e	-1 * PCI-E x4 slot
Memory
Technology	- Single channel DDR4 2133MHz DRAM
Max.	-64GB
Socket	-2*SO-DIMM
Graphics
Controller	- Intel HD Graphics
VRAM	- Shared Memory
VGA	-1 (Max. Resolution: 1920xl200@60Hz)
LVDS	-1 (Co-lay eDP, Max. Resolution: 1920xl080@60Hz)
eDP1.3	-1 (Co-lay LVDS, Max. Resolution: 4096x2304@60Hz)
HDMI 1.4	-1 (Max Resolution : 4096x2160@30Hz)
Multi Display	- Dual Display
Ethernet
Ethernet	-10/100/1000 Mbps
Controller	- Intel 1219-V + i211AT Gigabit LAN
Connector	- 2* RJ 45
Audio
CODEC	- HD Audio : Realtek ALC662VD
Channel	- Line-Out, MIC
SATA
Max Data Transfer Rate	-1* SATAN III (6.0Gb/s)

Rear I/O
VGA	-1
HDMI	-1
Ethernet	-2
USB	-4* USB 3.0
Audio	-1 (Line-out, MIC)
DC-input	-1
Internal Connector
USB	-5 (USB 2.0)
PS/2	-1
LVDS / inverter	-1 (Co-lay eDP)
eDP	-1
Serial	- 4 (COM1/2 Support 5V/12V TTL)
SATA	-1* SATAN III (6.0Gb/s)
M.2	- 2 (M key + E key)
GPIO	-1 (8 bit)
Chassis intrusion	-1
Audio Header	-1
SMBUS/I2C	-1
AT mode	-1
Watchdog Timer
Output	- From Super I/O to drag RESETCON#
Interval	- 256 segments (lOsec ~ 255min)
Power Requirements
Input PWR	-12 ~ 24V DC-in
Power On	AT/ATX Supported - AT : Directly PWR on as Power input ready - ATX: Press Button to PWR on after Power input ready
Certifications
Certifications	- CE, FCC, RoHS, REACH
Environment
Temperature	- Operating: 0°C~60°C
	- Storage: -20°C~85°C
Warranty
Warranty	- 2 Years Limited Warranty
Packing
Packing	- Net Weight: - Gross Weight: - Color Box dimension: 362290.565mm
