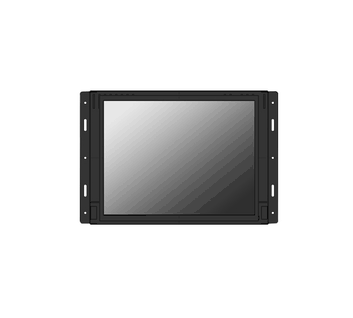

10.4" Industrial Display Open Frame VGA + Audio + Speakers w/ e-Resistive Touch (Model: iOP-1000AV-TRS-12V-MI01)

10.4" 800 x 600 Industrial display with Open Frame VGA +  Audio + Speakers with e-Resistive touch screen with serial (DB-9) controller, 12V DC power input Terminal Block "+" and "-", VESA 75 x 75mm

10.4" 800 x 600 Industrial display with Open Frame VGA + Audio + Speakers with e-Resistive touch screen with serial (DB-9) controller, 12V DC power input Terminal Block "+" and "-", VESA 75 x 75mm

iOP-1000AV-TRS-12V-MI01
  • Overview
  • Specifications
  • Download

Features:

  • Modularize mechanical design provides flexible product con iguration and easy maintenance
  • Build-in 5-wire RT touch screen for interactive application
  • Available with auto-brightness sensor offers application in day and night
  • VGA connector with optional AV,SV,AV-Looping
  • Complete custom design/solution for OEM customers
  • Auto Power On: Monitor is always "ON" when connect to power.
  • Auto Video Signal On: Monitor (Backlight) will turn off when no video signal, but it will Auto turn back on.

Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low refection coating
Aspect Ratio / Size 4 : 3 / 10.4" viewable diagonal area
Active Area / Pixel Pitch 211.2(H) x 158.4(V) mm / 0.264(H) x 0.264(V) mm
Native Resolution / Colors 800(H) x 600(V) / 262 K
Brightness / Contrast 350 cd/m2 (typ) / 600 : 1
Response Time ≤ 35 ms
Viewing Angle (typical) H. 140° (- 70° ~ + 70°) , V. 120° (- 60° ~ + 60°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Speaker Yes
Input Terminals 1x VGA, 1x RS232(touch) ,1x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC power input Terminal Block "+" and "-"
Power Consumption Operation / Power Saving 9.375 watt , < 2 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options       Touch Video/TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
SAW touch SV + AV + TV Wide Temperature Motion Sensor
Infrared touch   Sunlight Readable Light Sensor
Protected glass     Auto-Dimming
