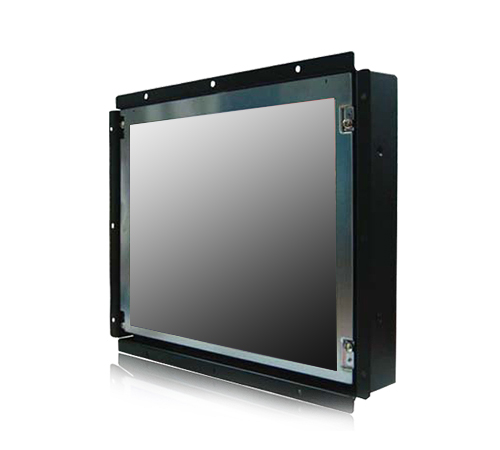

10.4" Open Frame 1024 x 768, 1000nits, 89/89/89/89, 3000:1 with VGA Input 18 Watts and -30 to 85°C (Model: YOP1040X)

10.4" Open Frame / 1024 x 768 / 1000nits / Viewing Angle 89/89/89/89 / Contrast Ratio 3000:1 / VGA input 18 Watts / -30 to 85°C

10.4" Open Frame / 1024 x 768 / 1000nits / Viewing Angle 89/89/89/89 / Contrast Ratio 3000:1 / VGA input 18 Watts / -30 to 85°C

Main Feature

    • High Brightness
    • LED Backlight.
    • 10.4" TFT LCD with resolution up to 1024x768.
    • Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.
Inquiry/Quote Request
YOP1040X
  • Specifications
  • Download
  • Contact Sales
System Specifications
Active Display Area (mm) 211.2(H) x 158.4(V)
Display Resolution (pixel) 1024 x 768
Pixel Pitch (mm) 0.264 x 0.264
Display Color 262K / 16.2M
Viewing Angles (CR?10) 89/89/89/89 (R/L/U/D)
Contrast Ratio 3000:1
Brightness (cd/m²) 1000
Response Time (msec) 30
Backlight Unit LED
Power Source AC 100~240V, Universal
Signal Connector 15 pin D-sub
Optional Touch Screen Resistive
