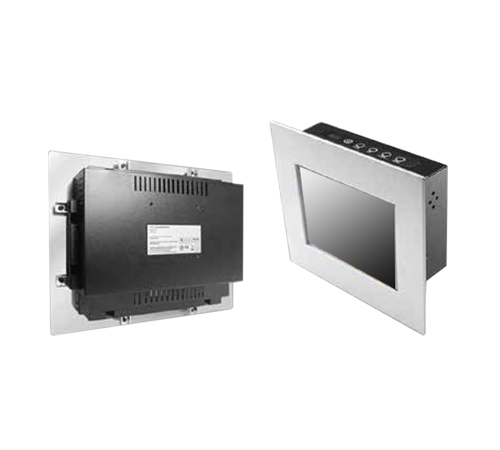

NEMA4x/IP65 Front Stainless Steel Panel Mount (Front Bezel 3mm), wide, 10.1", 1280x800, 200nits, VGA input, 178°/178°, IPS, Side OSD, including rear screw/VESA Mount without gasket (Recommend Silicone seal) with Projective Capacitive Touch (1-2mm) USB Controller 2 points touch (Model: ESPMW1010A-PCT)

NEMA4x/IP65 Front Stainless Steel Panel Mount (Front Bezel 3mm), wide, 10.1", 1280x800, 200nits, VGA input, 178°/178°, IPS, Side OSD, including rear screw/VESA Mount without gasket (Recommend Silicone seal) with Projective Capacitive Touch (1-2mm) USB Controller 2 points touch (Model: ESPMW1010A-PCT)

NEMA4x/IP65 Front Stainless Steel Panel Mount (Front Bezel 3mm), wide, 10.1", 1280x800, 200nits, VGA input, 178°/178°, IPS, Side OSD, including rear screw/VESA Mount without gasket (Recommend Silicone seal) with Projective Capacitive Touch (1-2mm) USB Controller 2 points touch (Model: ESPMW1010A-PCT)

Main Feature

    • Optional build-in touch screen functionality and fully  integrated multi-touch available
    • IP65 front side sealed for water-dust proof
    • Modular design for flexible integration and easy maintenance
    • Rugged aluminum chassis for harsh environments and demanding applications
    • A brightness sensor to automatically adjust the screen for day and night application
    • Low power consumption
    • VGA connector with optional AV, SV, and AV-Looping
    • Energy-efficient LED backlight and fanlessdesign for quiet operation
    • Sunlight readability technology for outdoor applications
    • Available custom designs for Open frame /Panel Mount /Stainless steel as options
Inquiry/Quote Request
ESPMW1010A-PCT
  • Overview
  • Specifications
  • Download
  • Contact Sales
ESPM Series: Front NEMA4/IP65 Industrial Stainless Steel Panel Mount Metal (3mm) Housing LCD Monitor (Optional Integrated Touchscreen)

Auto Power on and Video signal on/off
The LCD is always on whenever there is a power, this functionality eliminates the need to manual turn on the LCD. Also, you can control the LCD backlight on/off by video signal. LCD backlight will shut down when no video signal, but LCD backlight will wake up when the video signal is back on.

  • 1. Stainless steel 3mm Panel Mount (Optional for Front AR Glass or Vandal Resistant glass)
  • 2. NEMA4/ IP65 Front Anti Water proof and Dust Proof
  • 3. Optional for Resistive/ Capacitive/ SAW/ IR/ Projective Capacitive Touch screen
  • 4. Auto Video Signal ON / OFF Auto Always Power On

  • 1. For easy installation with Clamps mount
  • 2. VESA Mounting Hole Pattern
  • 3. Reliable built-in Power supply for 15" or above (Optional for 9-36V DC input)
  • 4. Standard VGA Input (Optional for DVI. HDMI, AV, BNC, AV looping and SDI)
  • 5. Optional for RS232 Remote Control Protocol: Command Code to set system
  • 6. Side OSD buttons can prevent unnecessary setting changes


LCD Options
  LED Backlight

Introducing LED backlight options for monitors for energy efficiency and a brighter screen.
The benefits of LED-backlit LCDs include:
  • Longer operating life
  • Low power consumption
  • Environmental friendliness (Mercury [Hg] free)
  • Greater resistance to mechanical shock (no glass tubes)
  • Quicker illumination to stable brightness
  • Wide dimming ratio (to <1%)
  • Reduction of electronic noise (low DC drive voltage)

  TouchScreen

Our LCD has a wide selection option to choose which touchscreen.technology suits for you.

Four-Wire
Resistive
Five-Wire Resistive
Pen Touch
Capacitive
Surface Wave(Saw)
Infrared Touch (Ir)
PRODUCT SIZE 1.7" - 24" 10.4" - 24" 15" - 19" 12" - 24" 10.4" - 30" 10.4" - 42"
TOUCH LIFE 1 - 2 million
touches		 30 - 35million
touches		 100 million
touches		 100 million
touches		 50 million
touches		 Long-term reliability
SCRATCH RESISTANCE Hard Coated Hard Coated Hard Coated
(SiO˛)		 Hard Coated
(SiO˛)		 Glass Overlay
Moh's hardness rating of 7		 Glass Overlay
Moh's hardness rating of 7
CONTAMINANT RESISTANCE Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers Resists moisture, dirt, vinegar, ammonia based food products and cleansers
INPUT METHOD Finger, Gloved Hand, Stylus Finger, Gloved Hand, Stylus Stylus Pen Finger Finger, Gloved Hand, Soft pliable stylus Finger, Gloved Hand, Stylus
CONTROLLER USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232 USB, RS232



  VIDEO Input

For Video inputs options:
  • DVI
  • DVI+HDMI
  • SVideo+AV
  • SVideo+AV+DVI
  • AV+Looping
  • DVI+AV+Looping
  • HD-SDI



  Optical Bonding

  • Optical Bonding provides the best reduction of ambient light washout of any commercially available enhancement technology.
  • Optical Bonding has a lower cost than most other competing technologies.
  • Optical Bonding offers superior ruggedization, enhancing the display durability under vibration, shock and other environmental extremes.



  RS-232 Remote Control

RS-232 Option for LCD/LED monitors.




  9-36V DC Input

iTech offers a selection of DC input from 9V to 36V.



  Light Sensor and Motion Sensor

iTech LCD offers Light and Motion Sensor


Panel Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size Wide / 10.1" viewable diagonal area
Active Area / Pixel Pitch 216.96(H) x 135.6(V) mm / 0.1695(H) x 0.1695(V) mm
Native Resolution / Colors 1280(H) x 800(V) / 262 K
Brightness / Contrast 200 cd/m2 (typ) / 500 : 1
Response Time < 16 ms
Viewing Angle (typical) H.130° (- 65° ~ + 65°) , V. 110° (- 60° ~ + 50°)
Light Source LED backlight, Long life, 35,000 hrs (typ)
Input Sources PC System Signal Analog RGB (0.7/1.0 Vp-p, 75 ohms)
Sync Separate Sync, Composite Sync, Sync On Green
Frequency Fh : 30 - 82Khz , Fv : 50 -75Hz
Audio System 2W speaker x 2
Input Terminals 1 x VGA (15 Pin Female D-S ub) , 1 x PC Audio (Stereo Headphone Jack) , 1 x DC Power Plug
Convenient Features Auto Calibration , Back Light Adjustment , Plug&Play (VESA DDC/CI, DDC 2B)
OSD Multi-Languages , Wall Mount Ready (VESA Dimension - please refer to Drawing)
Power 12V DC in
Power Consumption Operation / Power Saving 8.25 watt , < 1 watt (Support DPMS)
Operating Condition Temperature / Humidity 0°C ~ 50°C (32°F ~ 122°F) , 10% ~ 90% (no condensation)
Storage Condition Temperature / Humidity - 20°C ~ 60°C (- 4°F ~ 140°F) , 10% ~ 90% (no condensation)
Certification   FCC , CE
Dimensions Physical Please refer to Drawing
Carton W x H x D = TBD
Weight N.W. / G.W. 3.5 Kgs / 4.5 Kgs
Container Loaded 20ft / 40ft / 40ft HQ TBD (Sets , By pallet)

Options Touch Video / TV Enhanced Panel Others
Resistive touch SV + AV Panel with LED backlight Digital Signage(Stand alone)
Capacitive touch SV + AV + AV_Looping High brightness panel Networking Digital Signage
Infrared touch SV + AV + TV Wide Temperature Motion Sensor
Protected glass   Sunlight Readable Light Sensor
      Auto-Dimming
