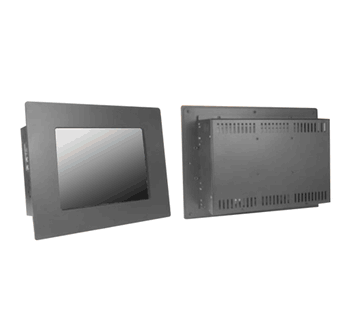

IP65 Front Side, Chassis Panel-PC, Wide 10.1" 1280 x 800, LED-400nits MS-98F5 (J1900) / RAM 8GB (0C~70C) / SSD 256GB (0C ~70C) with 5 Wire Resistive Touch Screen and USB Controller + Win 10 64bit Pro (Model: EMCW1010-J-V3)

IP65 Front Side, Chassis Panel-PC, Wide 10.1" 1280 x 800, LED-400nits MS-98F5 (J1900) / RAM 8GB (0C~70C) / SSD 256GB (0C ~70C) with 5 Wire Resistive Touch Screen and USB Controller + Win 10 64bit Pro (Model: EMCW1010-J-V3)

IP65 Front Side, Chassis Panel-PC, Wide 10.1" 1280 x 800, LED-400nits MS-98F5 (J1900) / RAM 8GB (0C~70C) / SSD 256GB (0C ~70C) with 5 Wire Resistive Touch Screen and USB Controller + Win 10 64bit Pro (Model: EMCW1010-J-V3)

Main Feature

    • 10.1" LCD panel, 1024 x 600, 400 nits
    • Intel Celeron Processor J1900 N2930 Quad Core 1.86/2GHz processor (formerly BayTrail )
    • Embedded Mini-ITX Motherboard with low power, slim and fanless design
    • 2 independent displays: LVDS and VGA
    • Supports 6xCOMs and 8xUSB 2.0
    • Entry level with best-value for choice
Inquiry/Quote Request
EMCW1010-J-V3
  • Specifications
  • Download
  • Contact Sales
Panel         Cell Type / Glass Surface TFT LCD / Black Anti-Glare, low reflection coating
Aspect Ratio / Size wide / 10.1" viewable diagonal area
Active Area / Pixel Pitch 222.72(H) x 125.28(V) mm / 0.2175(H) x 0.2088(V) mm
Native Resolution / Color 1280(H) x 800 (V) / 262 K
Brightness / Contrast 400 cd/rn (typ) / 500:1
Response Time ≦16 ms
Viewing Angle (Typical) H. 90° (- 45° ~ + 45°) , V. 50°(- 25° ~ + 25°)
Light Source LED, Long life, 35,000 hrs (typ)
Power   Power Input DC 12V
Power Consumption 16 Watt, <1 Watt
Environmental Operating Temperature 0°C~70°C
Operating Humidity 0%~95%(non-condensing)

Options   Touch Enhanced Pane Other
Resistive(With Glass) High Brightness Panel Wifi Networking Digital Signage
Capacitive Panel-LED Backlight 3G Web Cam
SAW Wide Temperature Bluetooth Motion Sensor
  Wide Viewing Angle RFID Auto Light Sensor
  Sunlight Readable   Auto-Dimming

Processor       CPU Intel Celeron Processor J1900, QC, 10W
Frequency J1900, 2.0 GHz, up to 2.42 GHz
L2 Cache 2 MB
CPU Type BGA
Chipset Integrated
BIOS AMI
Memory   Technology Max. Capacity Dual-channel DDR3L 1333/1066 MHz
  Up to 8GB
Socket 2 or 1 x 204-pin SO-DIMMs
(depends on SKU)
Display       Controller Intel HD Graphics
Graphic Memory Shared system memory up to 1.7 GB SDRAM
LVDS Daul Channel 24-bit
(add chrontel 7511B chipset)
VGA 1
Multiple Display 2 independent displays
Display Interface VGA up to 2560 x 1600 @60Hz LVDS up to 1920 x 1200 @60Hz
Ethernet Controller 2 or 1 x Realtek RTL8111G-CG GbE LAN (depends on SKU)
Audio Controller Realtek ALC887 HD Audio Codec
Super I/O Controller Fintek F81866AD-I
 H/W Monitor Watchdog Timer Smart Fan 256-level Watchdog Timer
    Ye s
TPM Controller Pin header
I/O Interface     USB 8 x USB 2.0 (4 x internal; 4 x rear)
Serial 6 x COM ports (COM1: rear, COM2~6: internal)
COM1: RS-232, 0V/5V/12V
COM2~6: RS-232, w/o power
Parallel 1 (Pin header)
PS/2 1 (Pin header)
GPIO 8-bits (4 x GPI, 4 x GPO), 3.3V
Expansion
Slot		 PCIe x1 1
M.2 N/A
Mini-PCIe 1 x Full-size (w/ mSATA)
Storage   SATA 1 x SATA 2.0
mSATA 1
Power Supply   DC DC-in 12V
ATX N/A
Environment Operating Temperature 0 ~ 70°C
Operating Humidity 10 ~ 90%, non-condensing
Storage Temperature -20 ~ 80°C
Storage Humidity 10 ~ 90%, non-condensing
Form Factor   Dimensions 170 x 170mm (Mini-ITX)
Weight 0.37 kg
Certification EMC FCC, CE, RCM, VCCI, BSMI
Software Platform OS Support Windows 7 (32/64-bit) Windows 8 (32/64-bit) Windows 10 (64-bit)
