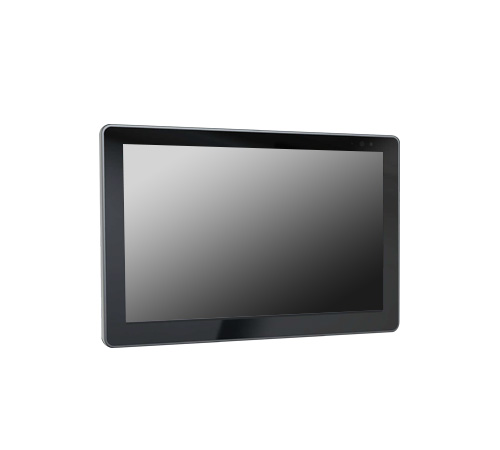

10.1" High Brightness Industrial HDMI Monitor w/ IP65 Rating frame and HDMI Extension Cable (Model: LECHW1010HB-IP)
10.1" 1500Nits High Brightness Industrial Grade HDMI Monitor (with HDMI with IP65 Rating Front and Back) Operating Temp -20-60C, Storage Temp -30-60C which with IP65 rating frame and HDMI Extension Cable.
LECHW1010HB-IP
- Overview
- Specifications
- Download
| Display |
Touchscreen |
Capacitive Touch |
| Panel |
10.1" LCD |
| Physical Resolution |
1920x1200 |
| Aspect Ratio |
16:10 |
| Brightness |
1500nits |
| Contrast |
1000:1 |
| Viewing Angle |
170°/170°(H/V) |
| LED Panel Life Time |
50000h |
| Input |
HDMI |
1 |
| VGA |
1 |
| USB |
1 (USB Type C) |
| USB |
1 (upgrade port) |
| Supported Formats |
HDMI |
2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... |
| VGA |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60... |
| USB Type-C |
1080p 24/25/30/50/60, 1080pSF 24/25/30, 10801 50/60, 720p 50/60... |
| Audio IN / Out |
Speaker |
1 |
| HDMI |
2ch |
| Ear Jack |
3.5mm - 2ch 48kHz 24-bit |
| Power |
Input Voltage |
DC 12-24V |
| Power Consumption |
<19W(12V) |
| Environment |
IP Rating |
IP65 (Only available for the monitor with extension cable) |
| Operating Temp |
-20°C ~ 60°C |
| Storage Temp |
-30°C ~ 60°C |
| Dimension |
Dimension (LWD) |
251mm * 170mm * 33mm |
| Weight |
820g |
| Extension Cable |
HDMI Extension Cable |
HDMI, USB-A (For touch) |
| VGA Extension Cable |
VGA, USB-A (For touch) |
