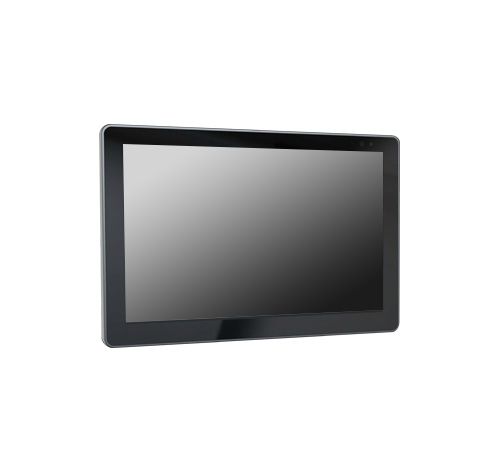

10.1" High Brightness Industrial HDMI Monitor w/ IP65 Rating frame w/ HDMI Extension Cable, Non-Touch (Model: LECHW1010HB-IP-NT)

10.1" 1500Nits High Brightness Industrial Grade HDMI Monitor (with HDMI with IP65 Rating Front and Back) IP65 Rating Enclosure with HDMI Extension Cable, 50,000-Hour LED Panel Life Time, Auto Dimming, Multiple mounts (75mm VESA, Ceiling and Wall-mount, etc.), Remote Control NON-TOUCH

10.1" 1500Nits High Brightness Industrial Grade HDMI Monitor (with HDMI with IP65 Rating Front and Back) IP65 Rating Enclosure with HDMI Extension Cable, 50,000-Hour LED Panel Life Time, Auto Dimming, Multiple mounts (75mm VESA, Ceiling and Wall-mount, etc.), Remote Control NON-TOUCH

Inquiry/Quote Request
LECHW1010HB-IP-NT
  • Overview
  • Specifications
  • Download
Experience exceptional visual clarity in demanding environments with the LECHW1010HB-IP-NT. Featuring a 10-inch high-brightness display, this industrial-grade HDMI monitor delivers superior visibility even under direct sunlight. Built to withstand harsh conditions, it offers IP-rated protection, multiple video inputs, VESA-compatible mounting options, and extended temperature tolerance-making it ideal for outdoor kiosks, vehicle dashboards, control panels, and other mission-critical applications.


Features:
  • 10.1" FHD - 10.1: Industrial-grade touch screen panel with 1920x1200 resolutions.
  • 1500 NITS - The screen can still be seen clearly in outdoor use without hindering operation.
  • AUTO DIMMING - Depending on the intensity of ambient light, the brightness of screen will be automatically adjusted to save power.
  • 50000 HRS LED PANEL LIFE TIME - Hardware engineers selected high quality industrial-grade LCD screen through multiple tests, giving the monitors an exceptional working life.
  • EMOTE CONTROL - Remote control for LCD display functions and configuration
  • MOUNTING - VESA 75mm Bracket

Display Touchscreen Non-Touch
Panel 10.1" LCD
Physical Resolution 1920x1200, supports up to 4096/3840 x 2160 30p
Aspect Ratio 16:10
Brightness 1500nits
Contrast 1000:1
Viewing Angle 170°/170°(H/V)
LED Panel Life Time 50000h
Input HDMI 1x 4K HDMI 1.4b
USB 1x USB (for touch)
USB 1 (upgrade port)
Supported Formats HDMI 2160p 24/25/30, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
USB Type-C 1080p 24/25/30/50/60, 1080pSF 24/25/30, 10801 50/60, 720p 50/60...
Audio IN / Out Speaker 1
HDMI 2ch
Ear Jack 3.5mm - 2ch 48kHz 24-bit
Power Input Voltage DC 12-24V
Power Consumption <19W(12V)
Environment IP Rating IP65 Rating Enclosure with HDMI Extension Cable
Operating Temp -20°C ~ 60°C
Storage Temp -30°C ~ 60°C
Dimension Dimension (LWD) 251mm * 170mm * 33mm
Weight 820g
Extension Cable HDMI Extension Cable HDMI, USB-A (For touch)
Mounting VESA Mount VESA 75mm Bracket
