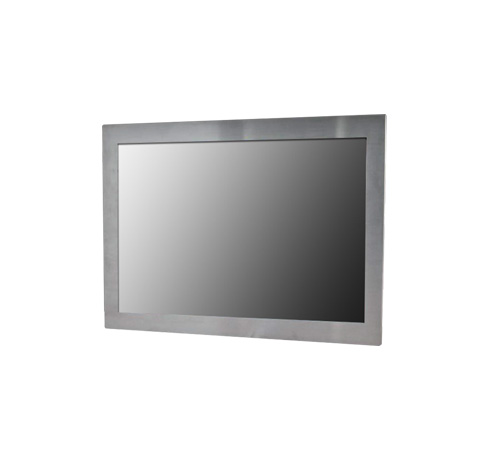

10.4" 1000nits, Full IP66 Steel Chassis Stainless Enclosure w/ HDMI, 24VDC, Tempered AR or AG Glass (Model: CCH1040HB-SIP-24)
10.4" Steel Chassis/Surface Mount High Brightness Industrial Panel Stainless Enclosure with Full IP66 / 1024x768 / 1000nits, -20C ~ 70C, VESA mount, Tempered AR or AG glass
Main Feature
- High Brightness
- Full IP66
- High Contrast color TFT LCD Monitor support resolution up to (1024 x 768)
- Widely used in chemical industry, food industry, medical devices, appliances etc. with good corrosion resistance
- I/O ( All Connectors are Waterproof Connectors / 6ft long ): HDMI and 24VDC with "+" / "-" Cable.
X
Inquiry/Quote Request
- Specifications
- Download
| Viewable Size Image | 10.4" |
| Active Display Area(mm) | 213(H) x 159.50(V) |
| Pixel Pitch(mm) | 0.0685 (H) x 0.2055(V) |
| Number of Pixels | 1024x768 |
| Contrast Ratio | 1200:1 (typ.) |
| Display Color | 16.2M |
| Brightness(cd/m 2 ) | 1000 (typ.) |
| Viewing Angle(CR>=10) | -88~88(H);-88~88(V) |
| Synchronization Range Horizontal/Vertical | 31.5~46.9KHz / 60~75Hz |
| Recommended Resolution | 1024x768@60Hz, 75Hz |
| Signal Connector | HDMI |
| Power Source | 24VDC with "+" / "-" |
| Power Management | VESA DPMS Compliant |
| Plug & Play | VESA DDC 1/2B |
