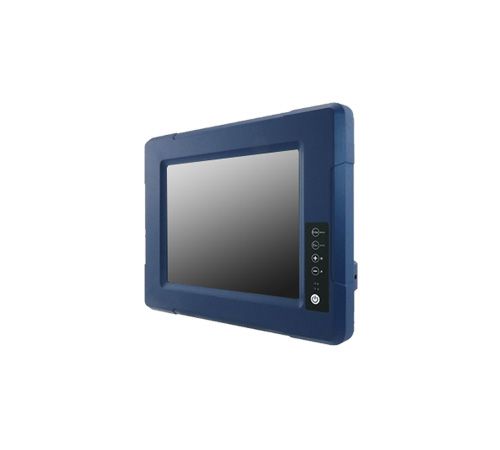

10.4" SVGA Panel 350nits Full IP65 Dispaly LCD, Anti-Reflection Protection Glass w/ Resistive Touch (Model: WRD1040P1-TR)
10.4" SVGA Panel, 800x600, Full IP65, Anti-Reflection Protection Glass, 12V DC lockable connector, 350nits with 5 Wire resistive touch screen
WRD1040P1-TR
- Overview
- Specifications
- Download
Display |
Resolution |
800x600 |
Size |
10.4 inches |
Contrast Ratio |
1000:1 |
Panel Brightness |
350 nits |
Display Color |
16.2M Colors |
View Angles |
88,88,88,88 |
Active Area |
213.0x160.0 mm |
Touch / Glass |
Resistive Touch Screen
Protection Glass Without Touch Function
(Optional) |
Optional function |
High brightness Panel for sunlight readable (Optional) |
|
|
Mechanical |
Dimension |
315x250x67 mm |
Mounting |
VESA Mount
Yoke Mount |
Enclosure |
Aluminum Housing |
Cooling System |
Fanless design |
Environment |
Operating Humidity |
10% to 90% (non-condensing) |
Operating Temperature |
-10~50°C |
Storage Temperature |
-30~70°C |
Shock |
MIL-STD-810G Method 516.6 (Optional) |
Vibration |
MIL-STD-810G Method 514.6 |
IP rating |
Front IP65 |
Certification |
Certification |
CE, FCC |
|
|
10 Ports |
Power Input |
1 x 10~60V DC, 3-Pin Terminal Block |
USB Port |
1x USB type-A for touch screen control (Optional) |
Serial Port |
1 x RS232 D-sub9 for touch screen control (Optional) |
Video |
1x VGA input
1x HDMI input (Optional) |
Indicator |
1 x LED Indicator for power 1 x LED Indicator for status |
|
|
Control |
Button |
1 x Power Button
1 x Adjust up button
1 x Adjust down button
1 x ESC (Auto) button
1 x Menu button |
|
|
|
|
Accessory |
Accessory |
Open Wire Cable with terminal block connector
External VGA cable
Driver CD & Manual
VESA screws |
Optional Accessory |
Yoke mount stand (Optional)
100-240V AC to DC Adapter with power cord (Optional)
External USB/COM cable for touchscreen control (Optional)
External HDMI cable (Optional)
|
|
