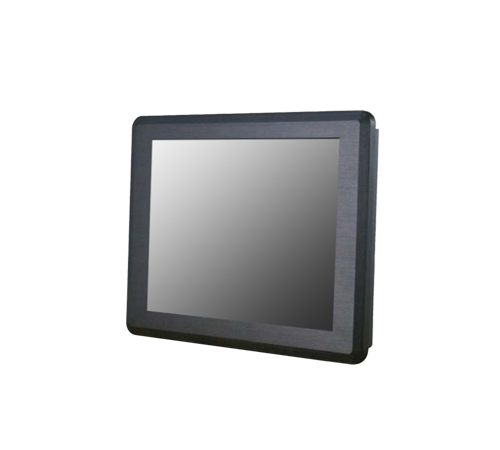

10.4 Front IP65 Panel Mount LCD w/ VGA + DVI + HDMI, 1500nits & Resistive Touch (Model: YPM1040PHBWT-TR-DC)

10.4 / Front IP65 / -30 to 70C / Panel Mount / Aluminum-6mm / 800x600 / 1500nits LED / Rear OSD / VGA+DVI+HDMI signal input / 4-Wires Resistive Touch (USB) / 24VDC Terminal Block

10.4 / Front IP65 / -30 to 70C / Panel Mount / Aluminum-6mm / 800x600 / 1500nits LED / Rear OSD / VGA+DVI+HDMI signal input / 4-Wires Resistive Touch (USB) / 24VDC Terminal Block

Main Feature

    • 10.4" SVGA TFT LCD with resolution up to 800 x 600.
    • Suitable for military, tablet, ruggedized PC, kiosk, advertising, POS, marline, transportation, gaming, gas pump.
    • Front Bezel IP65 (with glass or touch)
    • Construction Front Panel：High quality aluminum bezel (anodic treatment)
Inquiry/Quote Request
YPM1040PHBWT-TR-DC
  • Specifications
  • Download
Display Type 10.4" TFT-LCD
Panel
Display Color 262K/16.2M colors
Brightness (cd/m˛) 1500
Display Resolution (pixel) SVGA(800 x 600)
Viewing Angles (CR≥10) 80/80/60/70
Contrast Ratio 500 : 1
Response Time (msec) 35ms
Environmental
Temperature
Operation -30°C~70°C
Storage -30°C~70°C
Touchscreen 4-Wires Resistive Touch with USB Controller
