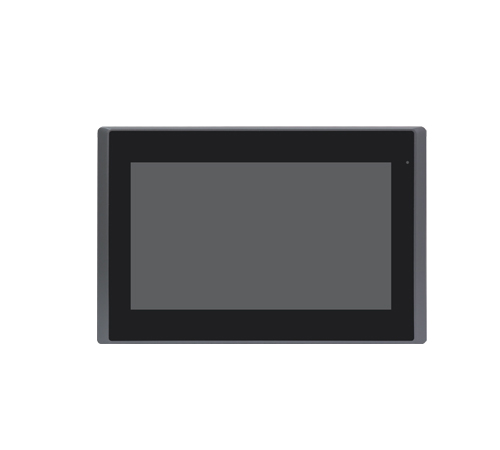

10.1" WSVGA Fanless HMI Barebone with TI-AM3354 ARM Cortex A8 processor CPU,512MB DDR3 RAM,,512 NAND flash, Projected Capacitive touch, 9~36VDC input, without Power Adapter, Plastic Chassis (Model: APCW10A8-UL-P)

10.1" WSVGA Fanless HMI Barebone with TI-AM3354 ARM Cortex A8 processor CPU,512MB DDR3 RAM,,512 NAND flash, Projected Capacitive touch, 9~36VDC input, without Power Adapter, Plastic Chassis (Model: APCW10A8-UL-P)

10.1" WSVGA Fanless HMI Barebone with TI-AM3354 ARM Cortex A8 processor CPU,512MB DDR3 RAM,,512 NAND flash, Projected Capacitive touch, 9~36VDC input, without Power Adapter, Plastic Chassis (Model: APCW10A8-UL-P)

Main Feature

    • ARM Based HMI
    • Fanless design
    • Flat front panel touch screen
    • TI- AM3354, ARM® Cortex™ A8 processor
    • Onboard 512MB DDR3 SDRAM
    • Onboard 512MB up to 1GB NAND Flash
    • DC 9~36V wide-ranging power input
    • LED backlight LCD
    • Resistive touch window/Projected capacitive touch
APCW10A8-UL-P
  • Specifications
  • Download
  • Contact Sales
SYSTEM
CPU Ti-AM3354, ARM Cortex A8(1x Core,1.0GHz)
System Memory Onboard 512MB DDR3 SDRAM
System Chipset NA
IO Port
USB 2 x USB 2.0 type A
Serial/Parallel 1 x RS-232/422/485 DB9 , default RS-232
Audio 1 x Line-out
LAN 1 x GbE LAN RJ-45 (POE for option)
Power 1 x 3-pin terminal block connector
1 x 2-pin Power switch connector
Option TB-508CAN1(Linux only)
TB-508C1
Storage Space
HDD Onboard 512MB NAND Flash (1GB for option)
Movable device 1 x micro SD slot
Expansion
On board expansion bus 1 x mini-PCIe slot(full size)

Display
Display Type 10.1" TFT-LCD
Max. Resolution 1024 x 600
Max. Color 262K
Brightness 250
View Angle 140 (H) / 120 (V)
Contrast Ratio 500: 1
Backlight Lifetime 15,000 hrs


Operating System Support
Windows Embedded Compact 7, Linux 3.2 / 4.4.12

TOUCHSCREEN – Resistive Touch
Light Transmission Over 80%
Interface ADC (Analog-to-Digital Converter)
TOUCHSCREEN – Projected Capacitive Touch
Light Transmission Over 90%
Interface USB
POWER SUPPLY
Power Input 9~36V DC
Power Consumption 7.7W
MECHANICAL
Construction Plastic front bezel and Chassis
IP Rating IP65 compliant front bezel
Mounting Panel Mount , VESA mount 75x75
Dimension 285 x 189 x 50
Net Weight 1.3
ENVIRONMENTAL
Operating Temperature 0~50°C
Storage Temperature -20~60°C
Storage Humidity 10 to 90%@ 40?C, non-condensing
Certificate CE / FCC CLASS A/ UL
