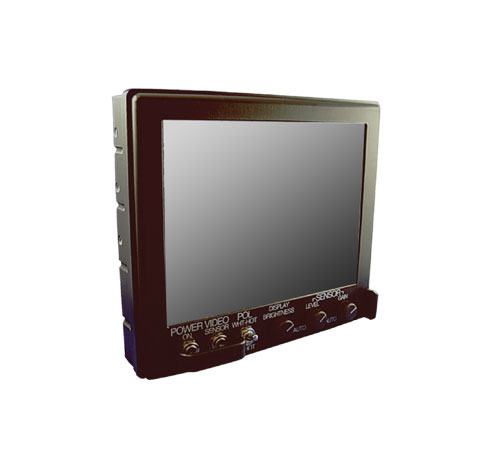

10.4" Driver's Vision Enhancer LCD Display with Anti-Reflective and Anti-Glare Treatments Enhanced Sunlight Readability (Model: DEV1040)

10.4" Driver's Vision Enhancer LCD Display with Anti-Reflective and Anti-Glare Treatments Enhanced Sunlight Readability (Model: DEV1040)

10.4" Driver's Vision Enhancer LCD Display with Anti-Reflective and Anti-Glare Treatments Enhanced Sunlight Readability (Model: DEV1040)

Main Feature

    • Composite AUX Video Input, RS-170 (1)
    • Pass-through Video Sensor Output, RS-170 (1)
    • Serial Data Interface, RS422 (2)
    • SVGA Resolution (800x600)
    • MIL-C Connectors*
    • LED Backlight (3000:1 Dimming Ratio)
    • Anti-Reflective and Anti-Glare Treatments
    • Enhanced Sunlight Readability
    • 10.4" TFT AMLCD
    • IP67/NEMA 6 Enclosure (Sealed Connectors*)
    • Mounts in Standard Bracket
DEV1040
  • Specifications
  • Download
  • Contact Sales
TECHNICAL SPECIFICATIONS
Display 10.4" TFT AMLCD (Thin-Film Transistor Active-Matrix Liquid-Crystal Display), SVGA (800x600), 16,777,216 Colors
Luminance 800 nits
Contrast Ratio 900:1
Dimming Ratio 3000:1
Viewing Angle 160° (H) x 160° (V)
Video Inputs RS-170 (2)
Connectors* -MIL-C Connectors (A1J1, A1J2, A1J3, A1J5)
- BNC (A1J3, A1J6)
Housing Milled AL, Black Hard Anodized
Mount Options Standard DEV Bracket; Backwards compatible with legacy DEV installations
Wide Range DC Power Input† 10-36 VDC (12, 24, 28 VDC nominal)
Power Conditioning Protected against Internal Short Circuit, Load Dump, Over Voltage and Reverse Polarity
Power Consumption 30 Watts Maximum
ENVIRONMENTAL SPECIFICATIONS
IP Rating IP67 (NEMA 6 Submersible)
Operating Temperature -40°C to 71°C (-40°F to 160°F)
Storage Temperature -51°C to 71°C (-60°F to 160°F)
Humidity 0-100%
Altitude 45,000 ft.
MILITARY SPECIFICATIONS
MIL-STD-461 EMI MIL-STD-810 Method 511; Explosive Atmosphere
MIL-STD-704 Aircraft Power Requirements MIL-STD-810 Method 512; Immersion
MIL-STD-810 Method 500; Altitude MIL-STD-810 Method 513; Acceleration
MIL-STD-810 Method 501; I & II; High Temperature MIL-STD-810 Method 514; Procedure I, II, V, VI; General Vibration
MIL-STD-810 Method 502; I & II; Low Temperature MIL-STD-810 Method 516; Procedure I, Functional Shock
MIL-STD-810 Method 503; Temperature Shock MIL-STD-810 Method 520; Temp, Humidity, Vibe and Altitude
MIL-STD-810 Method 505; Solar Radiation MIL-STD-810 Method 523; Vibro-Acoustic/Temp
MIL-STD-810 Method 506; Rain MIL-STD-1275 Vehicle Power Requirements
MIL-STD-810 Method 507; Humidity MIL-STD-1472 Thermal Contact Hazard
MIL-STD-810 Method 508; Fungus MIL-A-8625 Standard Finish, Type III, Class 1 & 2
MIL-STD-810 Method 509; Salt/Fog MIL-PRF-22750 Painted Finish, Optional, Minimum Quantity Required
MIL-STD-810 Method 510; Blowing Sand and Dust MIL-DTL-26482 (and 38999) Connector, Qualified
