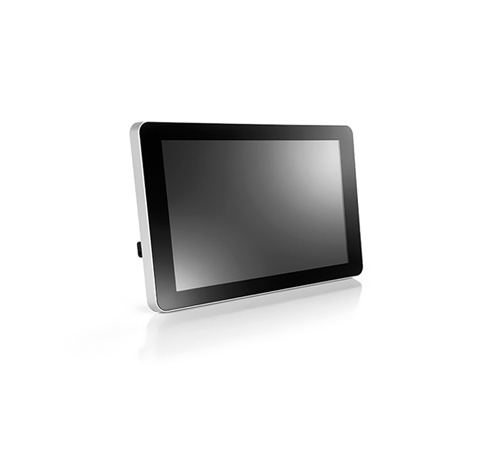

10.1" LCD Compact HMI Panel PC N3350 Processor w/ P-Cap Touch and EMC 4.0 Passed (Model: WMPCW1010)

10.1" 1280x800 LCD Compact HMI Panel PC Low Power Consumption N3350 Processor w/ P-Cap Touch and EMC 4.0 Passed

10.1" 1280x800 LCD Compact HMI Panel PC Low Power Consumption N3350 Processor w/ P-Cap Touch and EMC 4.0 Passed

Inquiry/Quote Request
WMPCW1010
  • Overview
  • Specifications
  • Download
The iTech WMPCW1010 is a 10-inch compact medical HMI panel PC designed for healthcare and industrial applications requiring high reliability in space-constrained environments. Powered by the Intel® N3350 processor, this fanless system features EMC Class B certification and offers optional UL/MDR medical-grade certification. With PoE support and an easy-access power button, the WMPCW1010 is ideal for door displays, nurse stations, or equipment panels where space and hygiene are critical.


Features:
  • Powered by Intel N3350 Dual-Core Processor
  • Industrial HMI with EMC Class B Office-Level Certification
  • Integrated Power Button for Easy Operation
  • Fanless Design with Operating Temperature Range of 0°C to 50°C
  • Compact Form Factor Ideal for Space-Constrained Installations
  • Door Display with POE (Optional)
Main System CPU Intel Celeron N3350 Processor, 1.1GHz (up to 2.4G Hz)
Graphic Intel Integrated HD Graphics 500
Memory 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
OS Support Optional: Windows 10 IoT 2019 LTSC (64bit)
Display Size 10.1"
Resolution (pixel) 1280 x 800
Number of Colors 16.7M Colors
View Angle (H/V) 170(H) / 170(V)
Brightness(cd/m˛, nit) Default 350 nits, By project 400 nits
Contrast Ratio 800:1 (Typ)
Touch Panel Type Chassis Projective Capacitive Touch Panel
Light Transmission 90 ± 3%
Lifetime 3,500,000 Times
Storage & Expansion Storage M.2 M-key 2242 SSD, (SATA 6Gb/s)
Expansion 1 x Mini-PCIe slot, Full Card Size, Signal (Support PCIex1, USB2.0)
I/O Ports USB 2 x USB 3.0
COM 1 x RS232/422/485 (default is RS232, RS422 and RS485 are by manually change jumper setting on mother board)
LAN 2 x RJ-45, Gigabit Ethernet
Audio Line Out,   1 x 3.5mm Phone Jack, 1 x 1.5W Speaker
Video (output) 1 x HDMI 1.4 / VGA 1 x D-sub
Control Keys Rear Bottom: Power on /off, ATX Switch
Power Power Input 9~36 VDC-in x 1
Power Adapter External, 63 Watts, Universal 100 ~240V AC in, 12V DC Out
Power Consumption 25W(12V)
Temperature Operating Temperature: 12V DC Input 0~50℃ (IEC60068-2-78)
Storage Temperature: -20~60°C
Humidity Operating & Storage: 10 ~ 90%, non-condensing
Water/Dust resistance Front IP65
Mechanical Characteristics Housing Silver Bezel / Black Cover
Dimensions (Net: mm) 263.3 (H) x 171 (V) x 35.7 (T)
Weights (Net: kg) 1.27 Kg
Mounting Chassis, VESA 75x75
Certification CE/ FCC/ VCCI Class B, Canada ICES-003, CE-EMC EN60601-1-2 (V4.0)

Options 1. 802.11 ac/a/b/g/n WLAN + Bluetooth Module (not coexist with PoE) (802.11 ac/a/b/g/n WLAN antenna at top, bluetooth 5.0 antenna at I/O side)
2. TPM 2.0 by module (not coexist with PoE)
3. Ethernet RJ45 male to female right angle adapter x 2
4. Operation system: Windows 10 (64bit)
5. 128G M.2 SSD storage
6. 8G RAM module
Customization 1. Webcam
2. RFID
3. COM x 2 (total)
4. Panel mount kit
5. White rear cover
6. PoE function follows IEEE802.3at (30 Watt), supports wake on LAN function (not coexist with wireless, COM port, remove AC-DC power adapter and DC input connector)
7. In wall mount bracket
8. 3G/4G module
9. Car ignition power control
