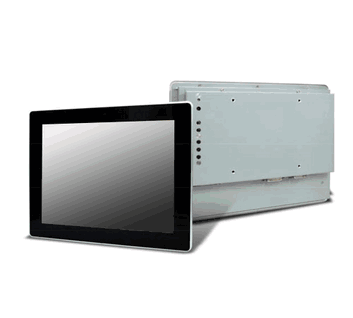

10.4" Aluminum True Flat Front Bezel PCAP Full Flat monitor Panel Mount , Input Signal VGA+HDMI+DVI 5 Key Buttons, LED Backlight, Wide Temp Operating temp -20°C ~ 70°C (Model: FCPM1040-PCAP)

10.4" Aluminum True Flat Front Bezel PCAP Full Flat monitor Panel Mount , Input Signal VGA+HDMI+DVI 5 Key Buttons, LED Backlight, Wide Temp Operating temp -20°C ~ 70°C (Model: FCPM1040-PCAP)

10.4" Aluminum True Flat Front Bezel PCAP Full Flat monitor Panel Mount , Input Signal VGA+HDMI+DVI 5 Key Buttons, LED Backlight, Wide Temp Operating temp -20°C ~ 70°C (Model: FCPM1040-PCAP)

Main Feature

    • Full Flat Panel Design
    • 10.4" (1024x768) Digital TFT LCD
    • Aspect Ratio: 4:3
    • Input Signal VGA / DVI-D / HDMI 1.3a
    • Maximum Support Resolution 1920x1080
    • Stereo Audio Amplifier, Output 2W@4Ω Speaker
    • Audio Line-In
    • 2 Points Projected Capacitive Touch
    • 5 Key Buttons Controls
    • 8 Languages OSD Menu
    • LED Backlight
    • Wide Operation Voltage +11V ~ +28V
FCPM1040-PCAP
  • Specifications
  • Download
  • Contact Sales
LCD
Panel Size 10.4"
Resolution (Pixels) 1024x768
Color 262K
Luminance without PMMA 400 cd/㎡
Luminance (PMMA) 348 cd/㎡
Contrast Ratio 500
View Angle 75 / 75 / 60 / 80
LED Life Time 30K (Min)
Power Requirement
Power Input (DC Jack 2.1ψ) +11V ~ +28VDC
Power Consumption@+12V 6.6 Watts (@Without Amplifier)
Touch Screen
PCAP Type USB Interface ( 2 Points )
Projected Capacitive
Touch Support OS
Windows / Linux
Controls
Key 5 Buttons
Serial Remote Control RS232 (Option)
Input Signal
VGA D-Sub15
DVI DVI-D
HDMI 1.3a
Audio
Amplifier 1W@8Ω / 2W@4Ω
Line-In Stereo Input Phone Jackψ3.5
Mechanical
Construction Aluminum Front Bezel with Completely
Power Requirement Covered PMMA and SECC steel chassis
Mounting Type Panel / VESA 100 x 100 Mount
Environment
Temperature Range
Operating -20~+70°C
Storage -20~+70°C
High Temperature & High Humidity (Non-condensing)
Operating +60°C / 90%
