10.1" 1280x800 Ultra Slim Panel PC w/ PCAP Touch, Intel Processor N50, 8GB LPDDR5 / 64GB eMMC (Model: VPCW1010AO2-V2)

10.1" 1280x800 Ultra Slim Panel PC with PCAP Touch Intel Processor N50, 6M Cache, up to 3.4 GHz 8GB LPDDR5 / 64GB eMMC, Fanless Operation from 0°C ~ 40°C Wide voltage input +12 ~ 24VDC and support Powered LAN 802.3at

10.1" 1280x800 Ultra Slim Panel PC with PCAP Touch Intel Processor N50, 6M Cache, up to 3.4 GHz 8GB LPDDR5 / 64GB eMMC, Fanless Operation from 0°C ~ 40°C Wide voltage input +12 ~ 24VDC and support Powered LAN 802.3at

Inquiry/Quote Request
VPCW1010AO2-V2
  • Overview
  • Specifications
  • Download

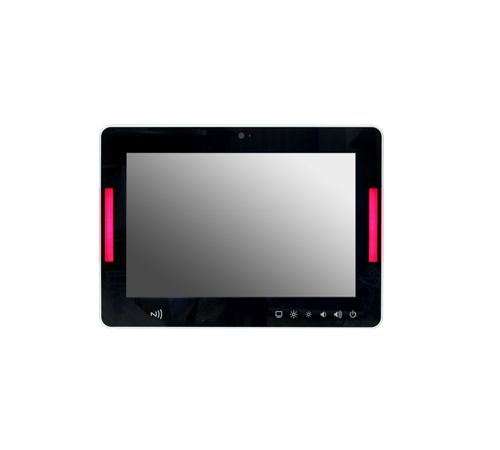

The VPCW1010AO2-V2 is a 10-inch ultra slim panel PC designed for modern industrial and commercial environments where space efficiency and performance are essential. With its sleek form factor, projected capacitive (PCAP) touchscreen, and fanless architecture, this system delivers responsive touch control and quiet operation. Its robust connectivity and durable build make it a smart solution for automation, kiosks, control interfaces, and digital signage applications.


Features:
  • 10.1" 1280 x 800 Ultra Slim Panel PC with PCAP touch
  • 8GB LPDDR5 / 64GB eMMC
  • Fanless operation from 0°C - 40°C
  • Intel Processor N50, 6M Cache, up to 3.4 GHz
  • True color LED indicating light bar
  • Wide voltage input +12 - 24Vdc and support Powered LAN 802.3at
System Information
Processor Intel Processor N50, 6M Cache, up to 3.4 GHz
System Memory 8GBLPDDR5
CPU Cooler (Type) Heatsink
Storage
Storage 64GB eMMC
Other Storage Device lx Micro SD Slot
Audio
Speaker Output 2 x 40 2.0W/2.2W (MAX)
Ethernet
LAN Chipset RealtekRTL8111l-CG
Ethernet Interface 10/100/1000 Base-Tx GbE compatible
Power Requirement
DC Input + 12V-+24V
DC Input Connector Lockable DC Jack
Software Support
OS Windows 10/11, ubuntu 24.04
Certification
Certification Information CE/FCC Class B
Panel
LCD Size 10.1"
Resolution 1280x800
Pixel pitch 0.1695 (H)x 0.1695 (V) mm
Luminance 350 cd/m2
Contrast ratio 800
Viewing angle 85 (U), 85(D), 85 (L), 85 (R)
Response time 30 ms
Backlight LED
Touch Type Projective capacitive multi-touch up to 10 points
Touch Light Transmission >86%

External I/O
USB Port 2 x USB 3.0
Audio Port lx Headphone Jack
LAN Port 1 x RJ45
COM Port 1 x RS232/RS422/485 (RJ45 Type)
DC input lx DC Jack
Other 1 x Touch key (Brightness/Volume/Power)
System Control
LED Indicator 2 x Ture color light bar
Data Collection
NFC Support ISO/IEC 14443 A/B, ISO/IEC 15693/18092,NFCIP-1, NFCIP-2, MIFARE & Felica
Camera lx2.0MP Camera
Wireless Communication
WLAN Wi-Fi 802.11a/b/g/n/ac/ax
Bluetooth Optional BT5.2
DC In / Out Characteristics
Input Voltage Range DC+12-+24V
Power Type AT
Mechanical & Environmental
Operating Temp. 0°C ~ 40°C (32°F ~ 104°F)
Storage Temp. -10°C ~ 60°C(-14°F ~ 140°F)
Operating Humidity 40°C @ 95% Relative Humidity, non-condensing
Dimension (W x L x H) 270 x193 x28 mm
Weight 1.1kg
IP Rating Front panel IP65
VESA 75x75
Power Requirement DC +12V ~ +24V or Powered LAN 802.3at
Power Mode AT
System Fan Fanless
Color White
Construction Plastic PC+ABS w/ Antibacterial
Component
Adapter Optional
Input: 100 - 240Vac/ 50 - 60Hz
Output: 60W adapter (12V @ 5A adapter) AC-DC adapter
